甘蓝型油菜LPAT家族基因鉴定与表达模式分析

李坤杰, 刘念, 丁磊, 朱燕, 蒙大庆, 范其新, 李迎春, 陈军

Identification and Expression Pattern Analysis of LPAT Family Genes in Brassica napus

Li Kunjie, Liu Nian, Ding Lei, Zhu Yan, Meng Daqing, Fan Qixin, Li Yingchun, Chen Jun

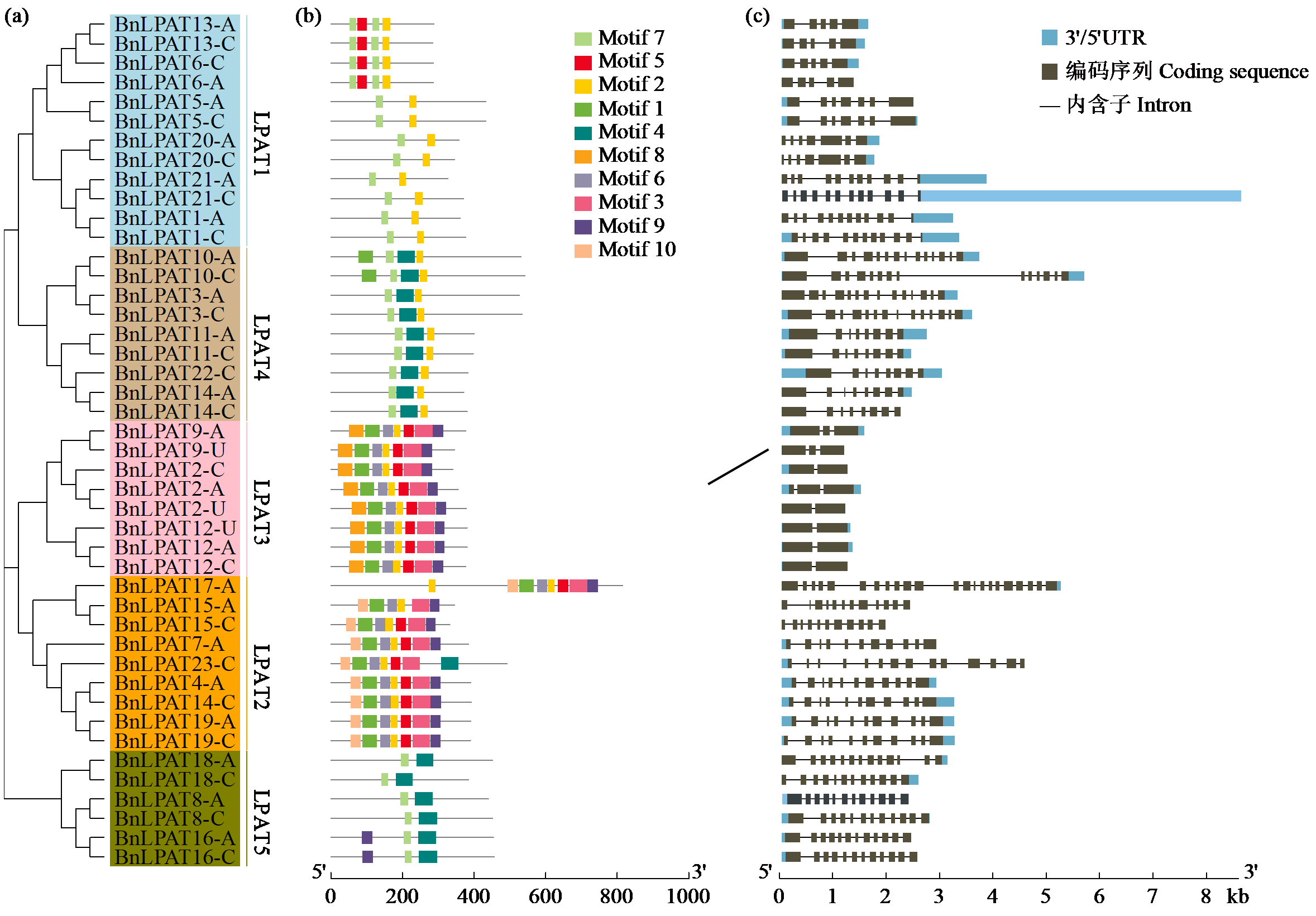

图3 BnLPATs保守基序和基因结构 (a) 44个BnLAPT临近加入法聚类树；(b) BnLPAT保守基序，共10个基序被检测，不同的基序用不同颜色的矩形表示；(c) BnLPAT基因结构，编码序列用灰色矩形表示，上、下游非编码区用蓝色矩形表示，内含子序列用线段表示。

Fig.3 Conserved motifs and gene structure of BnLPATs (a) Neighbor-Joining clustering trees of 44 BnLPATs; (b) BnLPATs conserved motifs, with 10 motifs detected. Different motifs are represented by differently colored rectangles. (c) Gene structure of BnLPAT. The coding sequence is represented by a gray rectangle, the upstream and downstream non-coding regions are represented by a blue rectangle, and the intron sequence is represented by a line.
