纳米肥料在园艺作物栽培中的作用研究进展
1
2
3
Research Progress on the Role of Nano-Fertilizers in Horticultural Crop Cultivation
1
2
3
通讯作者:
收稿日期: 2024-06-8 修回日期: 2024-07-24 网络出版日期: 2024-08-05
| 基金资助: |
|
Received: 2024-06-8 Revised: 2024-07-24 Online: 2024-08-05
作者简介 About authors
盛彬,研究方向为纳米材料对黄瓜生长发育的调控影响,E-mail:
近年来,在世界人口不断增长的背景下,农业纳米技术作为一个快速兴起的新研究领域已经成为提高作物生产力和养分利用效率的有力工具。农业中的纳米颗粒通常被用作纳米肥料,然而它们的持续应用还可能对园艺作物产生一定的负面影响。因此,本文概述了纳米技术对园艺作物的影响,系统阐述了纳米肥料在作物体内吸收与转运途径、影响园艺作物的主要效应及毒副作用,为纳米技术在园艺作物中应用提供理论指导。
关键词:
In recent years, agricultural nanotechnology has emerged as a transformative research field, offering innovative solutions to enhance crop productivity and nutrient use efficiency amidst growing global population demands. Nanoparticles in agriculture are often used as nano-fertilizers, but their continued use may also have a negative impact on horticultural crops. Therefore, this paper summarized the influence of nanotechnology on horticultural crops, systematically expounded the absorption and transport ways of nano-fertilizer in crops, the main effects and phytotoxic effects of horticultural crops, and provided theoretical guidance for the application of nanotechnology in horticultural crops.
Keywords:
本文引用格式
盛彬, 林志豪, 武志健, 赵一明, 叶雪凌, 吕红豪, 刘广洋, 徐东辉.
Sheng Bin, Lin Zhihao, Wu Zhijian, Zhao Yiming, Ye Xueling, Lü Honghao, Liu Guangyang, Xu Donghui.
土地化学合成肥料投入的增加导致环境污染、土壤生态和理化条件发生持续变化[1],大幅度降低了土壤的自然肥力,导致作物产量下降,供需缺口扩大,阻碍了农业发展。新型纳米肥料的开发为改善土壤性质以及作物对矿物质营养的吸收提供了途径。
纳米材料(nanomaterials,NMs)通常指尺寸范围在1~100 nm,介于分子、原子和宏观块状材料之间的颗粒[2],可分为自然和人工合成的纳米颗粒(engineered nanoparticles,ENPs),ENPs又可分为碳基和金属基2种类型。据报道[3],农业生产上使用最多的是金属基纳米颗粒(铜、银、锰、钼、锌、铁、硅、钛、硒等及其氧化物)。与块状材料相比,纳米材料具有特定的物理、光学、机械和化学特性,在种子萌发、作物生长发挥了较大的作用[4]。与传统肥料相比,纳米肥料可以更好地进行营养管理,可在很大程度上减少环境污染、富营养化和地下水污染。此外,纳米肥料可以保护养分免受泄漏或挥发,因此比传统肥料更能保持其肥力[5]。纳米肥料可以通过靶向和逐渐释放养分来提高养分输送的效率,降低肥料施用量并使农业生产经济最大化。
1 园艺作物对NPs的吸收和转运
1.1 吸收NPs的主要途径
作物通过叶片的气孔、发达的根系或间接通过木质部、韧皮部与外界环境进行物质交换。NPs因其独特的小体积可以被植物叶和根吸收,其在植物中的吸收、转运和积累取决于植物种类、细胞的生理结构、土壤环境以及纳米颗粒的性质(如粒径、形状、电荷、浓度、表面功能化及其稳定性)[10]。
叶面施肥比土壤施肥具有更直接、更有针对性的效果。与传统的土壤施肥相比,叶面施用纳米肥具有吸收快、性价比更高、减少土壤施用后可能出现的毒性症状等优点[11]。叶片表面的角质层和气孔被认为是植物吸收NPs的2个主要通道。研究[12]显示,直径小于4.8 nm的NPs可以通过角质层直接进入叶片,而粒径较大的NPs可以通过气孔进入。Hu等[13]的研究中,基于流体动力学尺寸和Zeta电位的纳米颗粒—叶片相互作用(NLI)经验模型表明,棉花的亲水性在NPs小于20 nm时表现出最高的叶面输送效率。此外,有一些NPs的表面改性方法,如涂层或封装技术,可以改变NPs附着力、亲脂性或亲水性,帮助NPs通过气孔或水孔穿透植物叶片,进而在整个植物的维管系统中运输[14]。Gao等[15]合成了介孔二氧化硅包覆的ZnO纳米颗粒外壳(nZnO@SiO2),结果表明在叶面施加nZnO@SiO2时,Zn几乎全部以纳米颗粒形式转移到地上部叶片和茎部,同时增强了番茄对nZnO@SiO2的吸收。
在土壤中,NPs经历了一系列复杂的反应,如迁移、转化、溶解、沉淀、分散、聚集和氧化还原反应。NPs与植物根部接触最初是通过根部表面吸附发生的。由于根毛可以释放黏液或有机酸等化学物质,使根表面带负电荷,导致带正电荷的NPs积聚在根部,容易在根部表面被吸收[16]。根细胞壁含有小孔,可以防止大颗粒通过。当根部缺乏外皮时,NPs可以进入根部的中央柱或木质部。有研究[17]表明,一些纳米颗粒可以破坏质膜并诱导表皮细胞壁上形成新的孔隙,以促进大直径纳米颗粒的进入。Wang等[18]通过透射电子显微镜(TEM)和能量分散谱(EDS)检查可知,木质部汁液中存在CuO NPs,表明CuO NPs从根部通过木质部转运到枝条。劈根试验和TEM观察进一步表明,CuO NPs可以通过韧皮部从新芽转移到根部。NPs在植物中吸收与转运机制如图1所示。

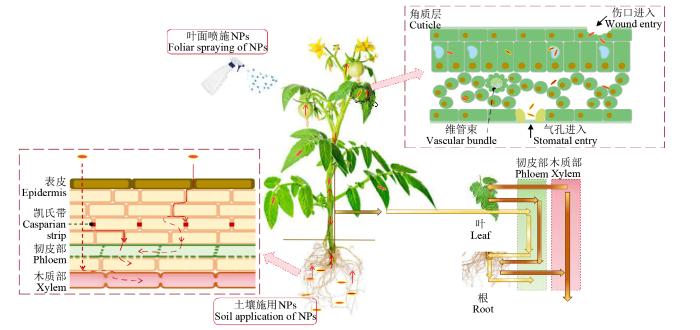

图1
图1
NPs通过不同处理在植物不同部位吸收与转运途径示意图
Fig.1
Schematic diagram of absorption and transport pathways of NPs in different parts of plants under different treatments
1.2 吸收NPs的转运机制
当NPs通过角质层和气孔进入叶肉细胞时,可以通过细胞外途径或质体途径在植物体中进行中、长距离运输。当NPs穿过细胞壁时,可以根据其粒径和表面电荷通过细胞外空间(如细胞壁、细胞壁之间的纵向通道、中间层和木质部)运输,当NPs通过胞间层时,会在细胞质中积聚并转运到植物内皮层和凯氏带(图1)。研究[19]表明,粒径小于50 nm的纳米颗粒通常通过质体途径在植物中运输,而大多数粒径在50~200 nm的纳米颗粒通过质外体途径运输。然后通过维管系统―韧皮部运输途径实现纳米颗粒从叶到根的运输。Gao等[20]利用质谱成像技术,首次证明了具有较大粒径的纳米肥料ZnO@MSN(>70 nm)在番茄叶面沉积后的韧皮部定位和转运。在番茄叶片背面施药可以显著促进纳米肥料的吸收和转运,同时证实了韧皮部在植物NPs的转运中起主导作用。
与质外体运输相反,细胞内吞作用也可能是NPs的吸收方式之一。内吞作用是由细胞膜折叠形成的跨膜途径,其作用是摄取细胞外分子(包括NPs)。一些NPs在表皮细胞壁中诱导了新的孔隙,从而促进了其进入。据报道[20],小的NPs(直径范围3~5 nm)与渗透压、毛细作用力一起穿透植物根部或直接穿过根表皮细胞。穿过细胞壁后,NPs通过质外体运输,直到它们到达中央维管柱,在木质部单向向上移动[21]。然而,NPs需要穿过凯氏带才能进入中央维管柱。接着NPs通过共质体运输在细胞质中的胞间层从一个细胞转移到另一个细胞。无法进入的NPs则聚集在凯氏带上,而到达木质部的NPs则转移到枝条并通过韧皮部回到根部[22],并在根、茎、果实、谷物和幼叶中不同程度地积累[23]。
2 NPs影响作物的作用机制
表1 促进园艺作物生长发育的纳米颗粒
Table 1
| 园艺作物Horticultural crop | 纳米颗粒NPs | 浓度Concentration | 方式Way | 阶段Stage | 参考文献Reference |
|---|---|---|---|---|---|
| 番茄Solanum lycopersicum | Se NPs | 75 μg/kg | 土壤施用 | 苗期 | [25] |
| 黄瓜Cucumis sativus L. | MoS2 NPs | 100 mg/kg | 根系浸泡 | 苗期 | [26] |
| 黄瓜Cucumis sativus L. | CeO2 NPs | 10 mg/kg | 根系浸泡 | 苗期 | [27] |
| 黄瓜Cucumis sativus L. | SiO2 NPs | 40 mg/L | 叶片喷施 | 幼苗期 | [28] |
| 黄瓜Cucumis sativus L. | Mn3O4 NPs | 20 mg/L | 叶片喷施 | 苗期 | [29] |
| 紫苏Perilla frutescens | ZnO NPs | 100 mg/L | 叶片喷施 | 幼苗期 | [30] |
| 薄荷Mentha canadensis L. | MWCNT | 200 μg/mL | 叶片喷施 | 苗期 | [31] |
| 苜蓿Medicago sativa L. | Fe NPs | 10 mg/L | 浸种+喷叶 | 幼苗期 | [32] |
| 茄子Solanum melongena L. | ZnO NPs | 50、100 mg/L | 叶片喷施 | 苗期 | [33] |
| 辣椒Capsicum annuum L. | Se NPs | 20 mg/L | 叶片喷施 | 苗期 | [34] |
2.1 促进种子萌发
种子纳米启动已被证明比传统的启动方法更有希望提高作物产量。Jhansi等[37]证明了较小尺寸(15 nm)的MgO NPs增强了种子萌发和生长参数。小尺寸的MgO NPs颗粒能够渗透到花生种子中,来影响其萌发和生长速率。Rizwan等[38]指出,NPs可以穿透种皮,并通过刺激代谢过程的酶来影响胚胎的发育过程。在种子胚根出现阶段,根尖组织与纳米颗粒接触并通过内吞作用经质外体进入表皮和皮层。在根部,它们通过共生途径流向植物分泌组织,并转移到其他植物器官。通过种皮吸收,可能改变幼苗出苗速率、胚根长度、酶活性、光合作用、呼吸作用和作物生产力来影响种子萌发。Sembada等[39]研究表明,芽孢杆菌与SiO2 NPs相互作用,能增强种子对水分的吸收,从而促进番茄种子的萌发。Cappetta等[40]用氧化铁磁性纳米颗粒(MNPs)处理辣椒种子,通过磁共振成像观察到MNPs在辣椒种皮普遍分布,可显著增强辣椒根部发育和营养生长。
2.2 提高光合作用

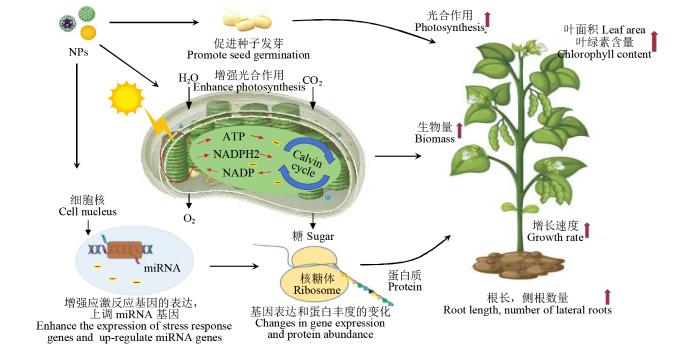

图2
图2
NPs通过增强光合作用来改善植物生理示意图
Fig.2
Schematic illustration of NPs used to improve plant physiology by enhancing photocooperation
Nayeri等[42]证明,Ag/ZnO NPs在模拟全太阳光谱条件下,增强了小麦的光合作用和发育。Abbasifar等[43]研究表明,10 mg/kg、25 nm的铜纳米颗粒(Cu NPs)可使罗勒根鲜重增加25%,根干重增加30%;对罗勒叶片中叶绿素a、叶绿素b、总叶绿素和类胡萝卜素的浓度都有显著影响。鲁力[44]用2 mg/株的Mn3O4 NPs喷施生菜叶面,结果显示生菜的光合色素、糖、多酚含量和生物量显著增加并上调了一系列小分子抗氧化代谢产物的水平。Faizan等[45]用8 mg/L的ZnO NPs根部浸入处理30 min可以显著提高番茄植株的生长、光合速率和叶绿素含量,并改善抗氧化酶系统,加速脯氨酸积累。Wang等[46]发现,与大体积的铜颗粒相比,1 mg/kg的铜纳米团簇(Cu NCs)能显著增强番茄的抗氧化酶活性,提高番茄叶片光合速率、碳水化合物含量,并且减缓叶片老化。
2.3 提高作物抗逆性
表2 纳米材料对园艺作物非生物胁迫的影响
Table 2
| 纳米颗粒 NPs | 胁迫 Stress | 影响 Effect | 参考文献 Reference |
|---|---|---|---|
| PNC(聚丙烯酸涂层CeO2 NPs) | 盐 | PNC增强了叶片K的保留和Na的排出,从而更好地维持细胞质K+/Na+稳态,从而提高棉花耐盐性。 | [61] |
| CuO NPs | 干旱 | 可以保持玉米叶片水分状态以及叶绿素和类胡萝卜素含量,增加ROS清除酶的活性和产量。 | [62] |
| ZnO NPs | 干旱 | ZnO NPs通过调控各种形态、生理生化属性,上调抗氧化酶来改善干旱的氧化应激,正向调节黄瓜的耐旱性。 | [63] |
| MgFe-LDHs | 低温 | MgFe-LDHs通过上调水杨酸刺激CsFAD3表达,降低脱落酸和茉莉酸的水平以支持黄瓜幼苗出苗率和生长,增加过氧化物酶基因的表达和活性。 | [64] |
| Se NPs | 低温 | 叶面喷施Se缓解了低温胁迫下草莓幼苗叶片净光合速率和叶绿素含量下降,提高了草莓幼苗叶片丙二醛和H2O2含量。 | [65] |
| Zn、Si、B | 盐 | 提高了马铃薯株高、地上部干重、叶片相对含水量、光合速率、气孔导度、叶绿素含量和块茎产量。 | [66] |
| PMC和PMO (聚丙烯酸涂层Mn3O4 NPs) | 盐 | PNC和PMO处理的油菜植株鲜重、干重、叶绿素含量、Fv/Fm和碳同化率均显著高于对照植株,同时能维持ROS稳态。 | [67] |
| Fe3O4 NPs | 重金属 | Fe3O4 NPs通过调节离子平衡、抗氧化剂含量和代谢谱来改善Cd/As诱导的生长抑制。 | [68] |
| Fe3O4 NPs、ZnO NPs | 重金属 | 促进植株生长,在Cd毒性作用下提高了株高、根长、地上部和根鲜重并解除Cd胁迫对于烟草生长的不利影响 | [69] |
3 NPs诱导园艺作物毒副作用的作用机制

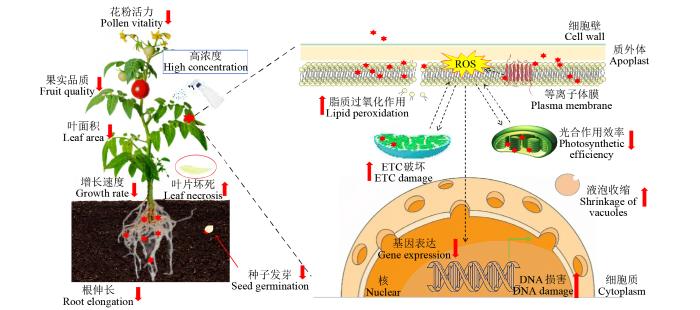

图3
图3
NPs应用对植物遗传、形态生理和生化性状的负面影响
Fig.3
Phytotoxic effects of NPs application on genetic, morphological, physiological and biochemical traits of plants
纳米材料通过直接刺激ROS生成或通过促进细胞氧化还原系统间接诱导细胞毒性。例如,Youssef等[74]的试验结果表明,较低浓度的ZnO NPs(10和25 mg/L)可增强蚕豆(Vicia faba L.)种子发芽并促进幼苗生长,而较高的浓度(100和200 mg/L)则具有植物毒性。接触ZnO NPs后,观察到有丝分裂指数的差异性增加和细胞周期的显著变化。ZnO NPs可降低叶绿素和类胡萝卜素含量并诱导脂质过氧化,最终通过增加ROS的形成来诱导细胞毒性并造成生物膜损伤[75]。CuO NPs通过减少植物生物量积累、刺激氧化应激以及对水稻植物细胞气孔和超微结构构成损伤来诱导水稻幼苗的毒性[76]。
纳米材料诱发的遗传毒性主要表现为DNA断裂与染色体损伤。纳米材料通过直接和间接途径2种途径破坏细胞中的DNA。在直接途径中,NPs直接穿透核孔并与DNA链结合,破坏其复制和转录。在间接途径下,NPs在诱导氧化应激和ROS产生后接近DNA分子[77]。氧化爆发使NPs能够渗透到细胞核中,核蛋白和有丝分裂纺锤体被破坏,随后阻止细胞周期并破坏DNA,最终导致细胞凋亡。Sun等[78]研究了ZnO NPs(5~50 mg/L)在洋葱的根分生组织中,通过细胞膜完整性、代谢活性、ROS积累、DNA损伤和染色体畸变,突出了细胞核内ZnO NP积累如何影响细胞有丝分裂,诱导染色体断裂、桥接、粘性和微核形成。Ghosh等[72]还提出了关于不同NPs在高等植物中诱导的遗传毒性的综合报告,其中使用先进的分析技术,如彗星测定、微核和染色体畸变,评估了烟叶、葱属和紫薇属物种的遗传毒性。
4 总结与展望
从过去的几十年研究看出,NPs因其可调的物理、化学特性和穿透植物的能力在农业领域获得了极大欢迎。使用纳米肥料可以更好地进行营养管理,比传统肥料更能保持肥力,降低肥料施用量并减少环境污染。本文综述了NPs在植物中的吸收和运输,以及NPs对作物生长发育的影响。NPs通过叶片的角质层孔隙、气孔和伤口被植物叶片吸收,并通过原根、根细胞壁孔和受损区域被根部吸收。进入植物后,NPs在细胞和亚细胞水平上与植物相互作用,这种相互作用取决于NPs的形状、大小、浓度和表面电荷等特征,以及植物物种的年龄、基因型、生理结构等。各种纳米颗粒在低浓度下可以促进植物生长(如促进种子萌发、增加生物量、增强光合作用和叶绿素含量、提高植株抗逆性等),而在高浓度下会对植物造成损害。NPs的毒性作用也会导致植物激素水平的变化,造成细胞毒性和遗传毒性,从而改变植物中的基因表达。植物毒性的机制主要涉及ROS的产生,最终导致植物细胞凋亡。尽管NPs对植物的影响已得到广泛证实,但NPs诱导植物毒性的机理仍然有限。
考虑到不同NPs的差异性,其在农业领域的应用仍需进一步探索:(1)不同NPs产生的植物效应差异较大。因此,应重点探究NPs对植物生长的内在机制,注重从分子和基因水平深入研究其影响机理以及植物自身的应对机制。(2)目前,研究NPs对园艺蔬菜生长的影响主要关注于种子和幼苗生长阶段,并不能完全准确地反映在短期处理下NPs对植物的影响机制。(3)目前,对纳米毒理学机制以及纳米毒理对生物体和环境的有害影响。研究人员可以通过组学方法或其他分子生物学手段加速这一研究领域的进展。此外,NPs在环境中的累积、分解和转化过程亟需详尽的探究,其在食物链中的传输途径也尚未完全明了。(4)探索农业生产中可应用的生物天然高分子纳米材料。
