小麦GzCIPK7-5B基因的生物信息学及表达分析

doi:10.16035/j.issn.1001-7283.2023.04.012

摘要/Abstract

摘要：

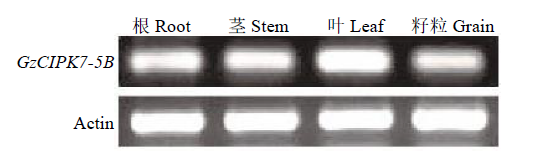

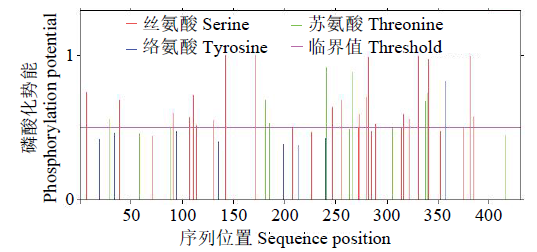

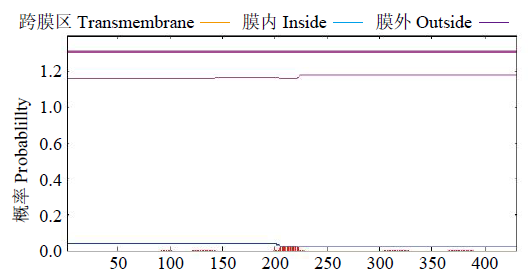

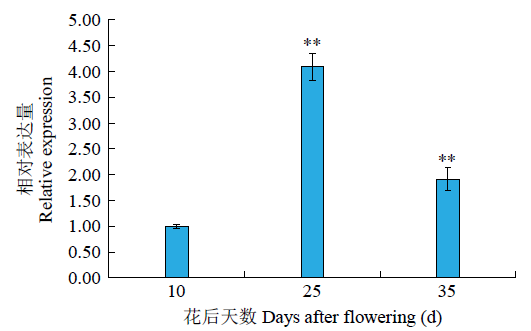

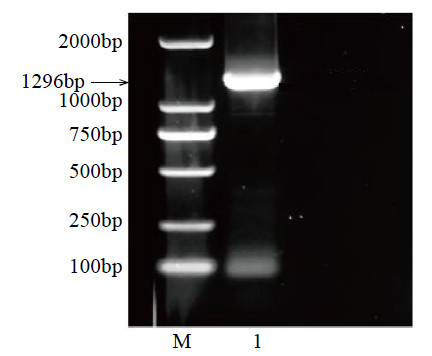

CIPK是植物钙感受器钙调磷酸酶B类似蛋白特定靶向的一类丝氨酸/苏氨酸蛋白激酶，在钙离子信号转运中起到重要作用。为探究GzCIPK7-5B基因在小麦中的功能，利用RT-PCR方法从小麦品种贵紫麦1号中克隆得到GzCIPK7-5B基因，进行生物信息学分析。用RT-PCR检测GzCIPK7-5B基因在贵紫麦1号不同组织（根、茎、叶、籽粒）中的表达情况。运用qRT-PCR检测GzCIPK7-5B在籽粒3个时期（花后10、25、35d）的表达水平。结果表明，GzCIPK7-5B基因的开放阅读框为1296bp，编码431个氨基酸，蛋白含有丝氨酸―苏氨酸蛋白激酶家族保守结构域，具有CIPKs家族基因的特征。其编码的蛋白含有29个磷酸化位点，无跨膜结构，是一种无信号肽的不稳定亲水性核蛋白。GzCIPK7-5B基因与野生二粒小麦的TdCIPK7-5B序列相似度最高，蛋白序列同源性为100%，在根、茎、叶和籽粒中均有表达，在贵紫麦1号籽粒花青素合成3个重要时期（花后10、25、35d），花后25和35d的表达水平显著高于花后10d。

关键词: 小麦, GzCIPK7-5B基因, RT-PCR克隆, 生物信息学, 基因表达

Abstract:

CIPK is a kind of serine/threonine protein kinase specifically targeting calcineurin B similar protein in plant calcium receptors,which plays an important role in calcium ion signal transduction.To explore the function of GzCIPK7-5B gene in wheat,the GzCIPK7-5B gene from wheat variety‘Guizimai 1’was cloned by RT-PCR and analyzed by bioinformatics.RT-PCR was used to detect the expression of GzCIPK7-5B gene in different tissues (roots, stems, leaves and grains) of ‘Guizimai 1’.qRT-PCR was used to detect the expression levels of GzCIPK7-5B at three stages (10, 25, 35days post anthesis) of grain.The results showed that the length of GzCIPK7-5B open reading frame was 1296bp,encoding 431 amino acids. The protein contained a conserved domain of serine-threonine protein kinase family and had the characteristics of CIPKs family genes. The encoded protein contained 29 phosphorylation sites and had no transmembrane structure. It was an unstable hydrophilic nuclear protein without signal peptide. The sequence similarity of GzCIPK7-5B gene and TdCIPK7-5B of wild two-grain wheat was the highest, and the protein sequence homology was 100%.GzCIPK7-5B gene was expressed in roots, stems,leaves and grains. In the three important periods of anthocyanin synthesis of ‘Guizimai 1’,the expression levels of 25 and 35days post anthesis were significantly higher than that of 10days after flowering.

Key words: Wheat, GzCIPK7-5B gene, RT-PCR cloning, Bioinformatics, Gene expression

赵鹏鹏, 李鲁华, 任明见, 安畅, 洪鼎立, 李欣, 徐如宏. 小麦GzCIPK7-5B基因的生物信息学及表达分析[J]. 作物杂志, 2023 (4): 77–84

Zhao Pengpeng, Li Luhua, Ren Mingjian, An Chang, Hong Dingli, Li Xin, Xu Ruhong. Bioinformatics and Expression Analysis of GzCIPK7-5B Gene in Wheat[J]. Crops, 2023(4): 77–84

图/表 15

表1

表2

图1

图2

图3

图4

图5

图6

图7

图8

图9GzCI

图10

图11GzC

图12

图13

参考文献 28

[1]	马瑞, 李世贵, 刘维刚, 等. 植物CBL-CIPK信号系统的功能及其响应非生物胁迫作用机制研究进展. 植物生理学报, 2021, 57(3):521-530.
[2]	Wang Y, Li T, John S J, et al. A CBL-interacting protein kinase TaCIPK27 confers drought tolerance and exogenous ABA sensitivity in transgenic Arabidopsis. Plant Physiology Biochemistry, 2018, 123:103-113. doi: 10.1016/j.plaphy.2017.11.019
[3]	许静, 高景阳, 李程成, 等. 过表达ZmCIPKHT基因增强植物耐热性. 作物学报, 2022, 48(4):851-859. doi: 10.3724/SP.J.1006.2022.13013
[4]	Wang R K, Li L L, Cao Z H, et al. Molecular clonging and fuctional characterization of a novel apple MdCIPK6L gene reveals its involvement in multiple abiotic stress tolerance in transgenic plants. Plant Molecular Biology, 2012, 79(1/2):123-135. doi: 10.1007/s11103-012-9899-9
[5]	Zhang Y M, Ling H J J, Dong W, et al. SiCBL4) interacts with SiCIPK24, modulates plant salt stress tolerance. Plant Molecular Reporter, 2017, 35(6):634-646.
[6]	Song S J, Feng Q N, Li Chun L, et al. A Tonoplast-associated calcium-signaliling module dampens ABA signaling during stomatal movement. Plant Physiology, 2018, 177(4):1666-1678. doi: 10.1104/pp.18.00377
[7]	Sanya S K, Kanwar P, Yadav A K, et al. Arabidopsis CBL interacting protein kinase 3 interavts with ABR1, an APETALA2 domain transcription factor, to regulate ABA responses. Plant Science, 2017, 254:48-59. doi: 10.1016/j.plantsci.2016.11.004
[8]	Zhao J F, Sun Z F, Zheng J, et al. Cloning and characterization of a novel CBL-interacting protein kinase from maize. Plant Molecular Biology, 2009, 69(6):661-674. doi: 10.1007/s11103-008-9445-y pmid: 19105030
[9]	Mahajaan S, Sopory S K, Tuteja N. Cloning and characterization of CBL-CIPK signaling components fromalegume(Pisum sativum). FEBS Journal, 2006, 27, 3(5):907-925.
[10]	Huang C L, Ding S, Zhang H, et al. CIPK 7 is involved in cold response by interacting with CBL1 in Arabidopsis thaliana. Plant Science, 2011, 181(1):57-64. doi: 10.1016/j.plantsci.2011.03.011
[11]	Qiu Q S, Gou Y, Detrich M, et al. Regulation of SOS1, a plasma membrane Na⁺/H⁺exchanger in Arabidopsis thaliana, by SOS2 and SOS3. Proceedings of the National Academy of Sciences of the United States of America, 2002, 99(12):8436-8441.
[12]	Xing Y, Huang Y, Xiong L Z. Characterization of stress-responsive CIPK genes in rice for stress toleranceimprovement. Plant Physiology, 2007, 144(3):1416-1428. doi: 10.1104/pp.107.101295
[13]	晋霞.小麦盐胁迫响应基因TaCIPK25的功能研究. 武汉:华中科技大学, 2017.
[14]	Tian Q Y, Zhang X X, Yang A, et al. CIPK 23 is involved in iron acquisition of Arabidopsis by affecting ferric chelate reductase activity. Plant Science, 2016, 246:70-79. doi: S0168-9452(16)30010-3 pmid: 26993237
[15]	Zhang X, Li Z C, Li X J, et al. CBL3 and CIPK 18 are required for the function of NHX5 and NHX6 in mediating Li⁺ homeostasis in Arabidopsis. Journal of Plant Physiology, 2020, 255:153295. doi: 10.1016/j.jplph.2020.153295
[16]	Peng H, Yang T, Whitaker BD, et al. Calcium/calmodulin alleviates substrate inhibition in a strawberry UDP glucosyl- transferase involved in fruit anthocyanin biosynthesis. BMC Plant Biology, 2016, 16(1):197. doi: 10.1186/s12870-016-0888-z pmid: 27609111
[17]	Zong Y, Xi X, Li S, et al. Allelic variation and transcriptional isoforms of wheat TaMYC1gene regulating anthocyanin synthesis in pericarp. Plant Science, 2017, 8:1645.
[18]	Yu Y H, Xia X L, Yin W L, et al. Comparative genomic analysis of CIPK gene family in Arbidopsis and Populus. Plant Growth Regulation, 2007, 52(2):101-110. doi: 10.1007/s10725-007-9165-3
[19]	Li L B, Zhang Y R, Liu K C, et al. Identtification and bioinfprmatics analysis of SnRK2 and CIPKfamily genes in Sorghum. Agricultural Sciences in China, 2010, 9(1):19-30. doi: 10.1016/S1671-2927(09)60063-8
[20]	Cui X Y, Du Y T, Fu T F, et al. Wheat CBL-interacting protein kinase 23 positively regulates drought stress and ABA responses. British Medical Council Plant Biology, 2018, 18(1):93.
[21]	余爱丽, 赵晋锋, 王高鸿, 等. 两个谷子CIPK基因在非生物逆境胁迫下的表达分析. 作物学报, 2016, 42(2):295-302.
[22]	冯志娟, 徐盛春, 刘娜, 等. CIPK基因对逆境胁迫及激素的响应特征. 植物遗传资源学报, 2017, 18(6):1168-1178. doi: 10.13430/j.cnki.jpgr.2017.06.019
[23]	李亚坤, 陈乃钰, 杨晓雪, 等. 紫花苜蓿MsCIPK8基因的克隆与表达分析. 植物遗传资源学报, 2020, 21(2):491-499.
[24]	Xu J, Li H D, Chen L Q, et al. A prontein kinase, interacting with two calcineurin B-like proteins, regulates K⁺transporter AKT1 in Arabidopsisi. Cell, 2006, 125:1347-1360. doi: 10.1016/j.cell.2006.06.011
[25]	Lee S C, Lan W Z, Kim B G, et al. A protein phosphorylation/dephosphorylation network regulates a plant potassium channel. Proceedings of the National Academy of Sciences, 2007, 104(40):15959-15964.
[26]	Ho C H, Lin S H, Hu H C, et al. CHL1functions as a nitrate sensor in plants. Cell, 2009, 138:1184-1194. doi: 10.1016/j.cell.2009.07.004
[27]	毕惠惠, 贺亚伟, 毛伟伟, 等. 小麦TaCIPK8基因的表达分析及其与TaCBLs的互作. 植物遗传资源学报, 2018, 19(2):296-304. doi: DOI:10.13430/j.cnki.jpgr.2018.02.013
[28]	时丕彪, 洪立洲, 王军, 等. 藜麦CqCIPK7基因的克隆与表达分析. 江苏农业学报, 2020, 36(4):1068-1072.

相关文章 15

[1]	贾永红, 魏海鹏, 曾潮武, 刘俊, 陈艳妮, 李建疆, 梁晓东. 基于KASP技术鉴定新疆春小麦材料抗病基因[J]. 作物杂志, 2026, (1): 15–19
[2]	叶晓娟, 刘强. 不同降水年型下春小麦产量对降水、施氮及秸秆覆盖的响应模拟[J]. 作物杂志, 2026, (1): 217–224
[3]	王云江, 王玉莹, 刘畅, 敬雪妍, 羊辰, 孙彩霞, 王春平. 施氮量对小麦籽粒主要矿质元素含量的影响和有效性分析[J]. 作物杂志, 2026, (1): 240–248
[4]	李青欣, 金秀良, 宋晓, 张珂珂, 郭腾飞, 黄绍敏, 岳克, 丁世杰, 黄明, 李友军. 有机肥部分替代氮肥对豫东冬小麦生长及土壤特性的影响[J]. 作物杂志, 2025, (6): 121–131
[5]	陈志豪, 王婷, 常旭虹, 王艳杰, 刘希伟, 杨玉双, 王玉娇, 王德梅, 赵广才. 黄淮冬麦区北片冬小麦产量和品质性状的综合分析[J]. 作物杂志, 2025, (6): 148–155
[6]	刘松涛, 蒋超, 史涵博, 闫立楠, 赵海超, 卢海博, 栗慧, 黄智鸿. 玉米ZmPOD基因克隆、生物信息学分析及功能验证[J]. 作物杂志, 2025, (6): 37–44
[7]	杜晓宇, 邹少奎, 李楠楠, 王丽娜, 张倩, 吕永军, 李顺成, 韩玉林. 高产小麦品种周麦27号及其亲本的遗传分析[J]. 作物杂志, 2025, (6): 67–72
[8]	马强, 李延坤, 王桂娥, 文婷婷, 张天雨, 田纪春, 王延训. 山东省审定彩色小麦品种农艺性状和品质分析及改良方向研究[J]. 作物杂志, 2025, (5): 113–119
[9]	李天奇, 曹燕燕, 葛昌斌, 李雷雷, 黄杰, 廖平安. 小麦品种漯麦906及其衍生系的KASP标记检测与分析[J]. 作物杂志, 2025, (5): 128–134
[10]	吴立国, 李晓慧, 赵清, 陈小龙, 潘静, 刘旺清, 白海波, 李前荣. 宁夏春小麦品种（系）农艺性状遗传多样性分析[J]. 作物杂志, 2025, (5): 147–154
[11]	李小敏, 龚红瑜, 田冰欣, 刘东华, 李春喜, 姜丽娜, 马建辉. 黄淮海平原不同行距配置和密度组合对小麦冠层结构和氮素利用的影响[J]. 作物杂志, 2025, (5): 171–176
[12]	李加汇, 陈如雪, 白红波, 王永华. 不同株型冬小麦光合―灌浆协同特性及其对产量构成的影响[J]. 作物杂志, 2025, (5): 195–203
[13]	李杰, 张永强, 雷钧杰, 吕晓庆, 陈传信, 徐其江, 聂石辉, 徐文修, 常旭虹. 不同尿素类型及施用方式对滴灌冬小麦植株性状及产量构成的影响[J]. 作物杂志, 2025, (5): 266–271
[14]	孙宪印, 张继波, 吕广德, 亓晓蕾, 孙盈盈, 米勇, 牟秋焕, 尹逊栋, 王瑞霞, 钱兆国, 高明刚. 旱地与补灌条件下不同基因型小麦高产稳产性比较[J]. 作物杂志, 2025, (4): 104–110
[15]	贺新春, 杜何为, 黄敏. 玉米ZmCaM1基因的克隆和表达分析[J]. 作物杂志, 2025, (4): 19–28

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

引物名称Name of primer	引物序列Sequence of primer	用途Usage
CIPK7-5B-F	CCTCTAGAATGGCCGTCGCCAAGAGCA	基因克隆
CIPK7-5B-R	CCCCCGGGTCACAATTCCTCGCATCCATGCCAC	基因克隆
CIPK7-5B-F	CGTCTTCCTCCAGCTCGTCTCC	qRT-PCR和RT-PCR
CIPK7-5B-R	GATGAGGACGTTCTGCGGCTTG	qRT-PCR和RT-PCR
Actin-F	CCAAGGCGGAGTACGATGAGTCT	qRT-PCR和RT-PCR
Actin-R	TTCATACAGCAGGCAAGCACCAT	qRT-PCR和RT-PCR

在线软件Online software	用途Usage
http://web.expasy.org/prot param/	蛋白的理化性质

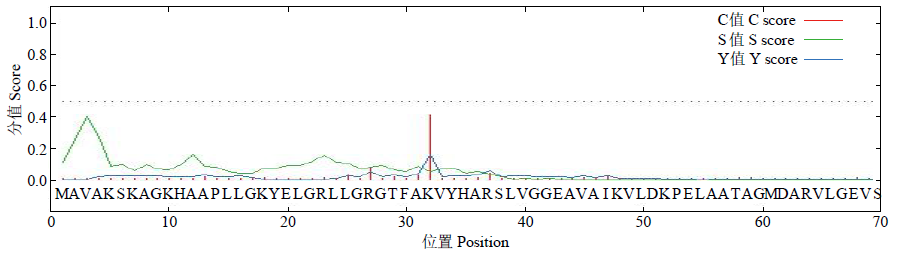

https://www.cbs.dtu.dk/services/SignalP-3.0/	信号肽预测
https://web.expasy.org/protscale/	亲疏水性预测

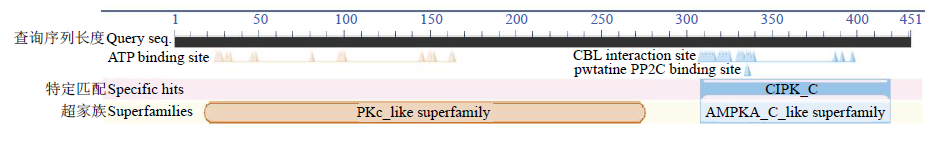

https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi	保守结构域预测
http://www.cbs.dtu.dk/services/	磷酸化位点预测
https://www.csbio.sjtu.edu.cn/bioinf/Cell-PLoc-2/	亚细胞定位预测

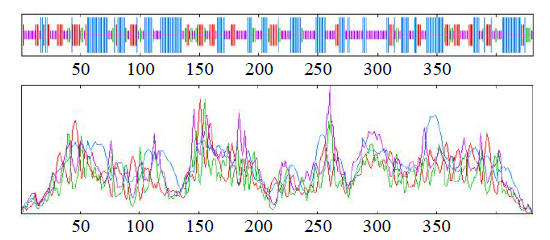

https://www.csbio.sjtu.edu.cn/bioinf/Cell-PLoc-2/	二级结构预测
https://swissmodel.expasy.org/	三级结构预测
MAGE 7.0	进化树构建

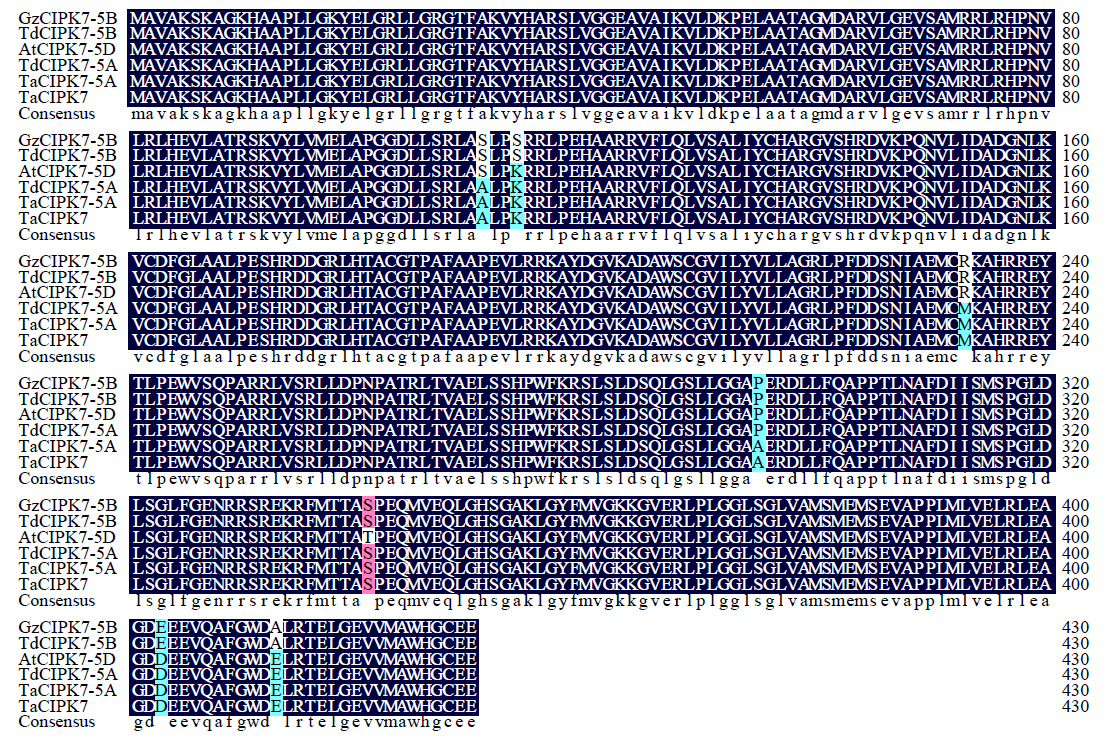

DNAMAN 8.0	多重序列比对
