作物杂志,2026, 第4期: 57–66 doi: 10.16035/j.issn.1001-7283.2026.04.007

• 遗传育种·种质资源·生物技术 • 上一篇    下一篇

利用CRISPR/Cas9技术编辑Badh2基因改良水稻优质恢复系QR79的香味

吴钱蓉1,2(), 吴娴2, 姜雪2, 王倩2,3, 宫彦龙2, 王忠妮2, 朱速松4(), 宋莉1()

  1. 1 贵州大学生命科学学院/贵州大学农业生物工程研究院/山地植物资源保护与种质创新教育部重点实验室， 550000， 贵州贵阳
    2 贵州省水稻研究所， 550000， 贵州贵阳
    3 农业农村部喀斯特山区作物基因资源与种质创新重点实验室， 550000， 贵州贵阳
    4 贵州省农作物品种资源研究所， 550000， 贵州贵阳
  • 收稿日期:2025-02-18 修回日期:2025-04-04 出版日期:2026-08-15 发布日期:2026-08-11
  • 通讯作者: 朱速松,宋莉
  • 作者简介:吴钱蓉，主要从事水稻分子遗传育种研究，E-mail：3426853382@qq.com
  • 基金资助:
    贵州省农业科学院青年基金项目(黔农科青年基金（2023）30);贵州省科技计划项目（课题）(黔科合基础-ZK（2022）一般284);贵州省优质特色水稻研发与转化及园区技术服务能力建设(黔科合平台人才（2017）5719号)

CRISPR/Cas9-Mediated Editing of the Badh2 Gene Improves Aroma in Elite Restorer Line QR79

Wu Qianrong1,2(), Wu Xian2, Jiang Xue2, Wang Qian2,3, Gong Yanlong2, Wang Zhongni2, Zhu Susong4(), Song Li1()

  1. 1 College of Life Sciences, Guizhou University / Institute of Agro-Bioengineering, Guizhou University / Key Laboratory of Mountainous Plant Resources Protection and Germplasm Innovation, Ministry of Education, Guiyang 550000, Guizhou, China
    2 Guizhou Rice Research Institute, Guiyang 550000, Guizhou, China
    3 Key Laboratory of Crop Gene Resources and Germplasm Innovation in Karst Mountainous Area, Ministry of Agriculture and Rural Affairs, Guiyang 550000, Guizhou, China
    4 Guizhou Crop Germplasm Resources Institute, Guiyang 550000, Guizhou, China
  • Received:2025-02-18 Revised:2025-04-04 Online:2026-08-15 Published:2026-08-11
  • Contact: Zhu Susong,Song Li

RichHTML

1

PDF (PC)

1

摘要：

以优质恢复系QR79为受体材料，采用CRISPR/Cas9基因编辑技术，针对其Badh2基因的第1外显子和第2外显子区域，设计2个靶向位点，旨在获得具有香味、无转基因成分且主要农艺性状保持稳定的纯合突变体。对野生型和突变体的Badh2基因表达量、2-乙酰-1-吡咯啉（2AP）含量、γ-氨基丁酸（GABA）含量及主要农艺性状进行了系统测定与分析。结果表明，与野生型相比，纯合突变体植株QR79-badh2-1和QR79-badh2-2中Badh2基因表达量显著降低，2AP含量显著增加，而GABA含量显著减少；同时，粒长、千粒重、整精米率和结实率等主要农艺性状保持稳定，但产量构成因子受到一定程度影响。综上所述，通过CRISPR/Cas9基因编辑技术成功实现了对优质水稻恢复系QR79的香气特性遗传改良，显著提升了香味成分2AP的含量，为加速香型籼稻新品种的研发提供了理论依据和遗传资源。

关键词: 香稻, Badh2, CRISPR/Cas9, 2-乙酰-1-吡咯啉, γ-氨基丁酸

Abstract:

In this research, the elite restorer line QR79 was used as the recipient for CRISPR/Cas9-mediated editing of the badh2 gene, with two targeting sites designed within exon 1 and exon 2. The primary aim was to obtain homozygous mutant lines characterized by a distinct aroma profile, complete absence of transgenic elements, and stable inheritance of main agronomic traits. The expression level of the Badh2 gene, the concentration of 2-acetyl-1-pyrroline (2AP), the content of γ-aminobutyric acid (GABA), as well as the key agronomic traits of both the wild-type and mutant genotypes were systematically quantified and comprehensively analyzed. The results showed that, compared with the wild type, the expression levels of the Badh2 gene in the homozygous mutant plants QR79-badh2-1 and QR79- badh2-2 were significantly reduced, the content of 2AP were significantly increased, while the content of GABA were significantly decreased. At the same time, the main agronomic traits such as grain length, 1000-grain weight, head rice rate, and the seed-setting rate remained stable, but the yield components were affected to a certain extent. In conclusion, the genetic improvement of the aroma characteristics of the high-quality rice restorer line QR79 was successfully achieved through the CRISPR/Cas9 gene editing technology, which significantly increased the content of the aroma component 2AP, provided theoretical support and genetic resources for accelerating the research and development of new fragrant indica rice varieties.

Key words: Fragrant rice, Badh2, CRISPR/Cas9, 2-acetyl-1-pyrroline, γ-aminobutyric acid

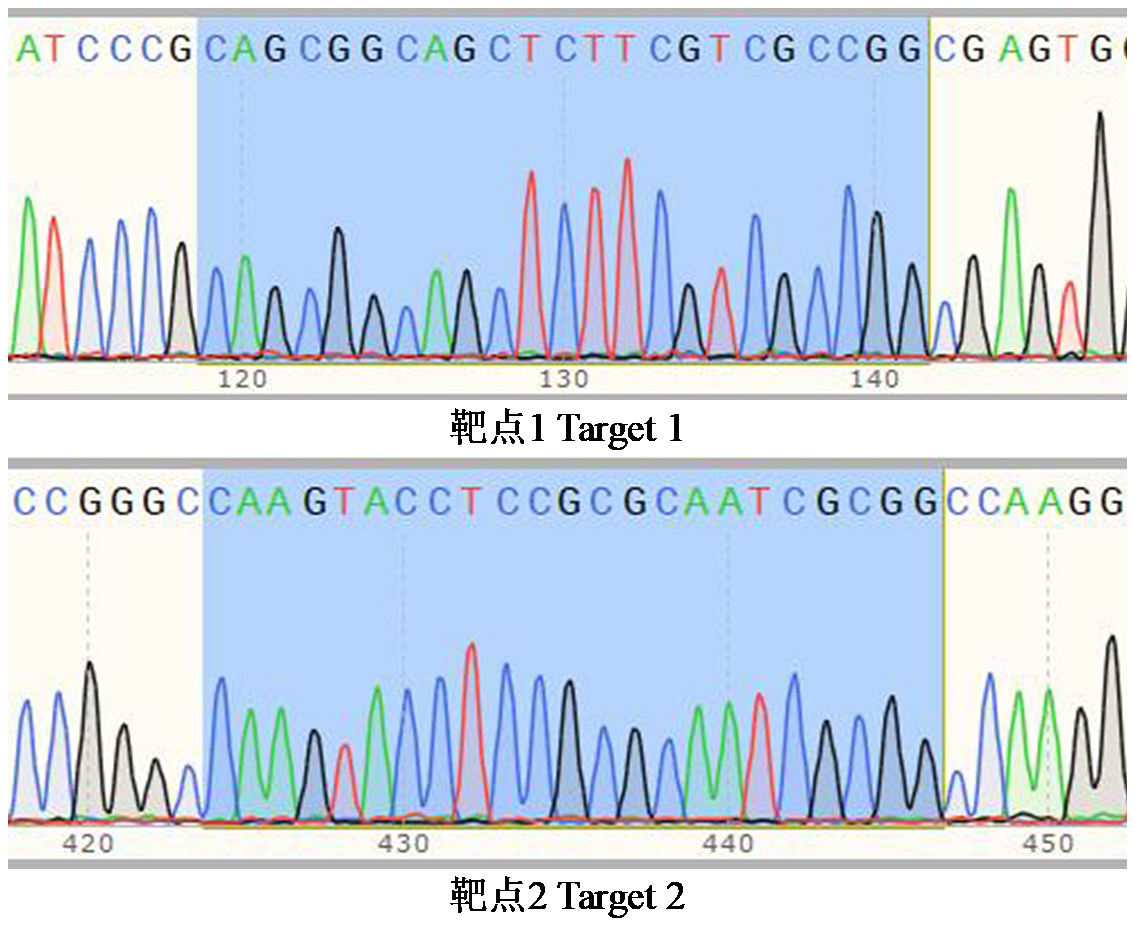

图1

试验所用靶点序列

表1

试验所用引物序列

引物名称Primer name 引物序列（5′-3′）Primer sequence 引物用途Purpose
gR-F-T1 CAGCGGCAGCTCTTCGTCGCgttttagagctagaaat 载体构建
OsU6a-R-T1 GCGACGAAGAGCTGCCGCTGCggcagccaagccagca 载体构建
gR-F-T2 CAAGTACCTCCGCGCAATCGgttttagagctagaaat 载体构建
OsU6b-R-T2 CGATTGCGCGGAGGTACTTGCaacacaagcggcagc 载体构建
U-F CTCCGTTTTACCTGTGGAATCG 载体构建
gRNA-R CGGAGGAAAATTCCATCCAC 载体构建
Pps-R TTCAGAggtctcT accg ACTAGTATGGAATCGGCAGCAAAGG 载体构建
Pgs-L AGCGTGggtctcG ctcg ACGCGTATCCATCCACTCCAAGCTC 载体构建
SP-L GCGGTGTCATCTATGTTACTAG 菌落PCR检测
SP-R TGCAATAACTTCGTATAGGC 菌落PCR检测
Cas9-F AGATGATCGCCAAGTCCGAGC 转基因阳性株检测
Cas9-R CTTGATGATGAGGTCCTTCTTG 转基因阳性株检测
Badh2 -F TCCATCTCCGTATCTCTCAC Badh2基因扩增、测序
Badh2-R TATGGGGGGCTTATACCGAA Badh2基因扩增、测序
Badh2-RP-F TTATGGTCTGGCTGGTGCTGT Badh2基因的荧光定量PCR扩增
Badh2-RP-R TGCTTGACGCTTAGGTAGTTGT Badh2基因的荧光定量PCR扩增
Actin-RP GTACAGTGTCTGGATTGGAGGAT 水稻内参基因扩增
Actin-FP GGGTCCGAAGAATTAGAAGCA 水稻内参基因扩增

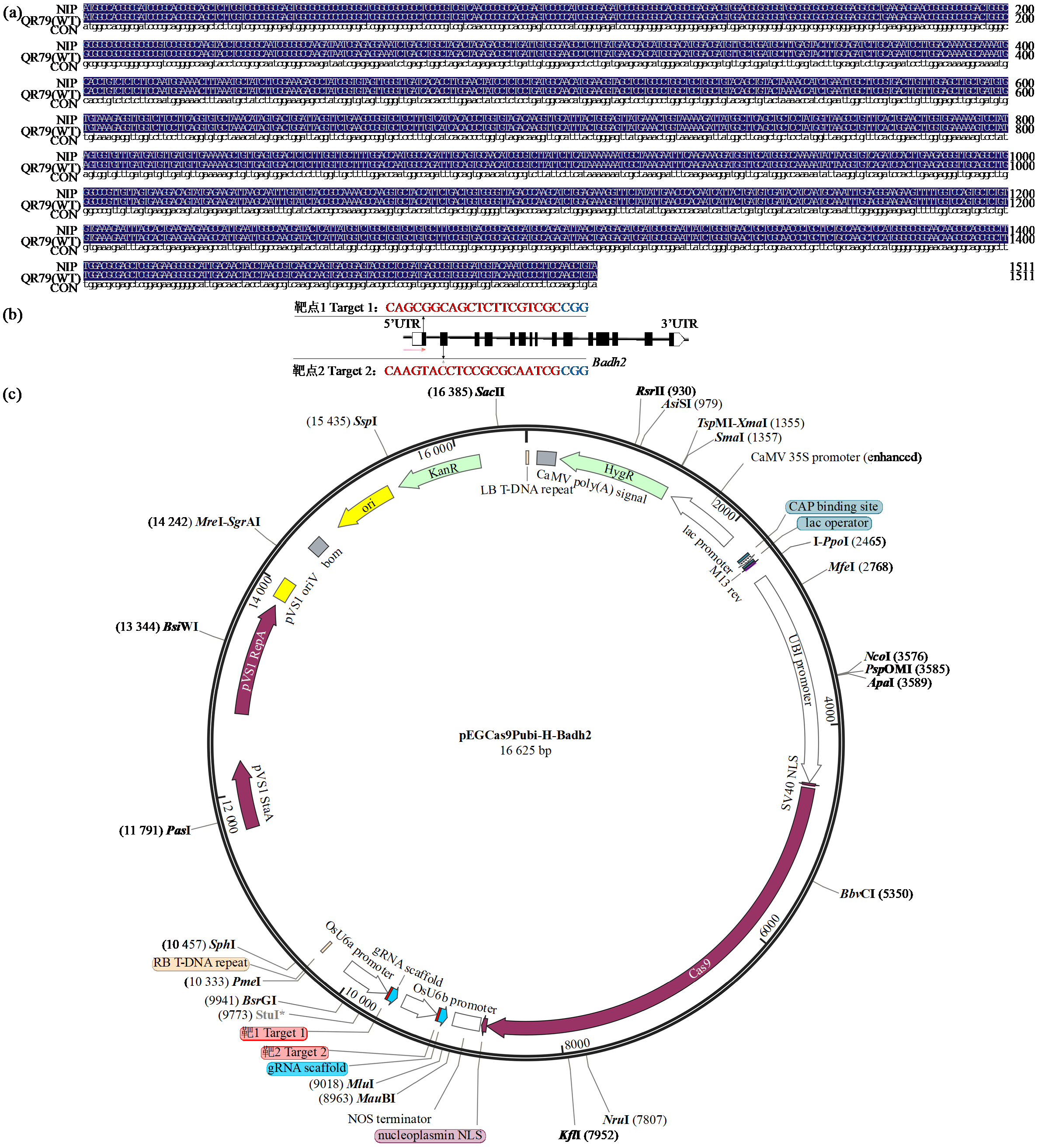

图2

靶位点在Badh2基因上的位置及载体构建图 (a) 优质恢复系QR79香味基因Badh2全长序列对比图，NIP：日本晴，CON：共识序列，下同；(b) 2个靶位点在Badh2基因上的位置，黑色区域为外显子区域，左一为第1外显子，左二为第2外显子，红色序列为靶点序列，蓝色序列为PAM序列；(c) U6a驱动的T1和U6b驱动的T2 2个表达盒在pEGCas9Pubi-H-Badh2载体上的连接顺序。

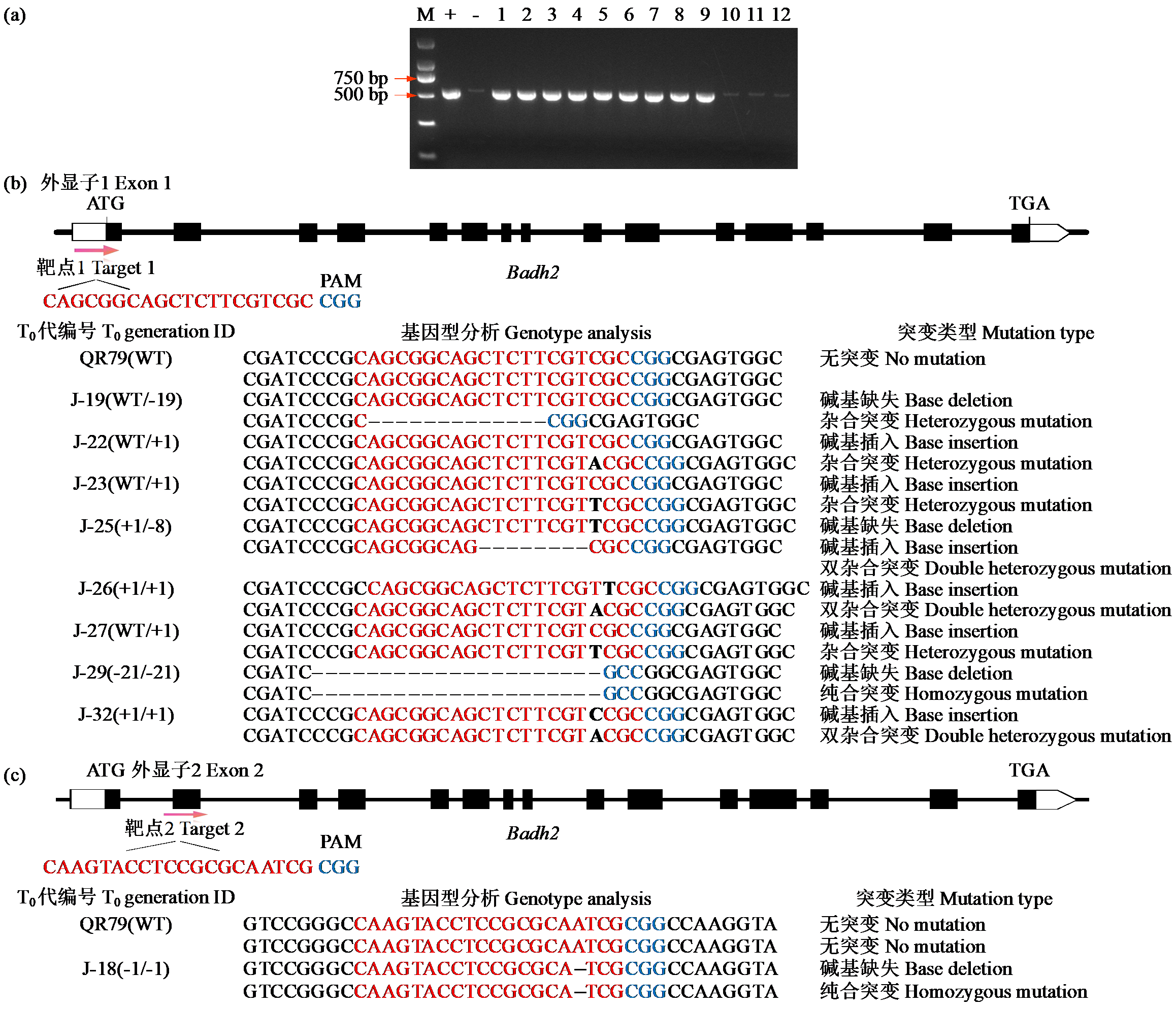

图3

T0代转基因阳性植株鉴定及其突变类型分析 (a) Cas9-F/R引物对T0代阳性转基因植株PCR检测；编号1~12对应材料J-18、J-19、J-22、J-23、J-25、J-26、J-27、J-29、J-32、J-阴-1、J-阴-2、J-阴-3；“+”代表阳性对照，“-”代表阴性对照，M代表2000 bp DNA marker，下同。(b)和(c)分别为基因编辑株系T0代单株靶点1和靶点2突变类型分析；红色字体表示靶点序列，蓝色字体表示PAM序列，“-”表示碱基缺失，黑色加粗表示碱基突变。

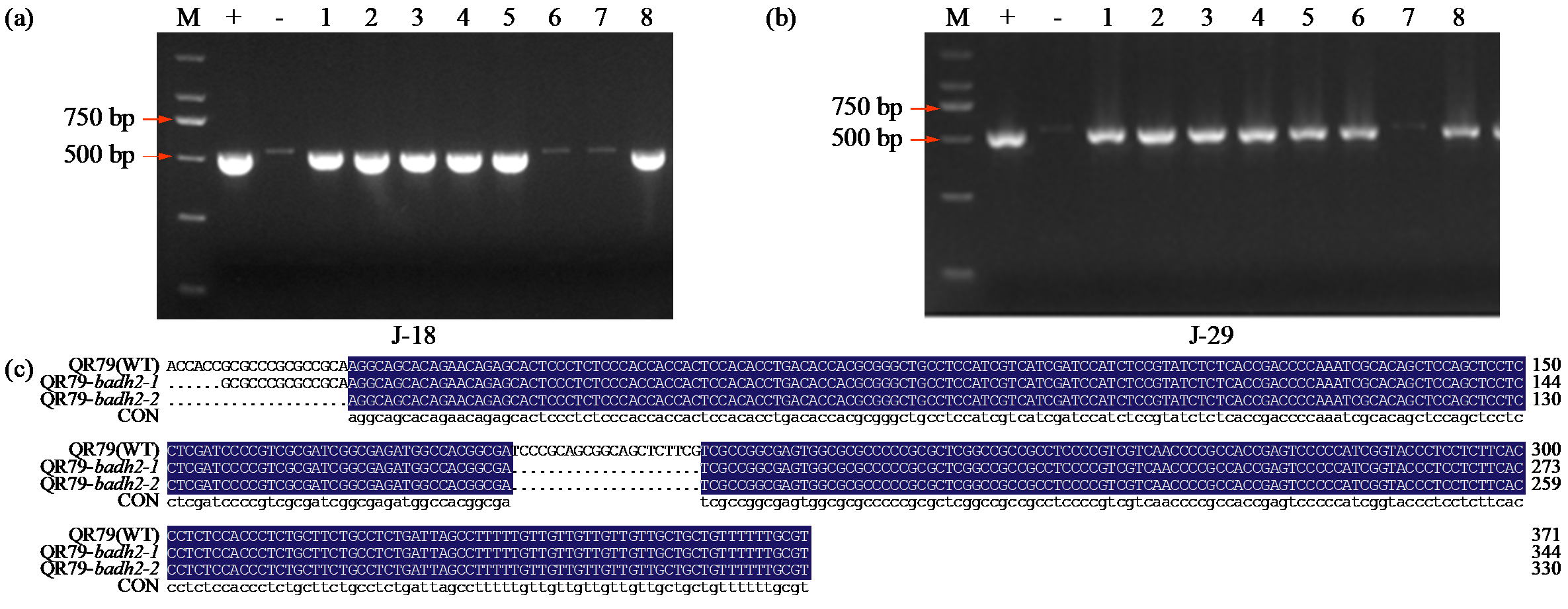

图4

Cas9-F/R引物对T1代基因编辑株系中Cas9基因PCR检测图 (a) 编号1~8对应J-18株系；(b) 编号1~8对应J-29株系；(c) T1代纯合突变植株序列对比图。

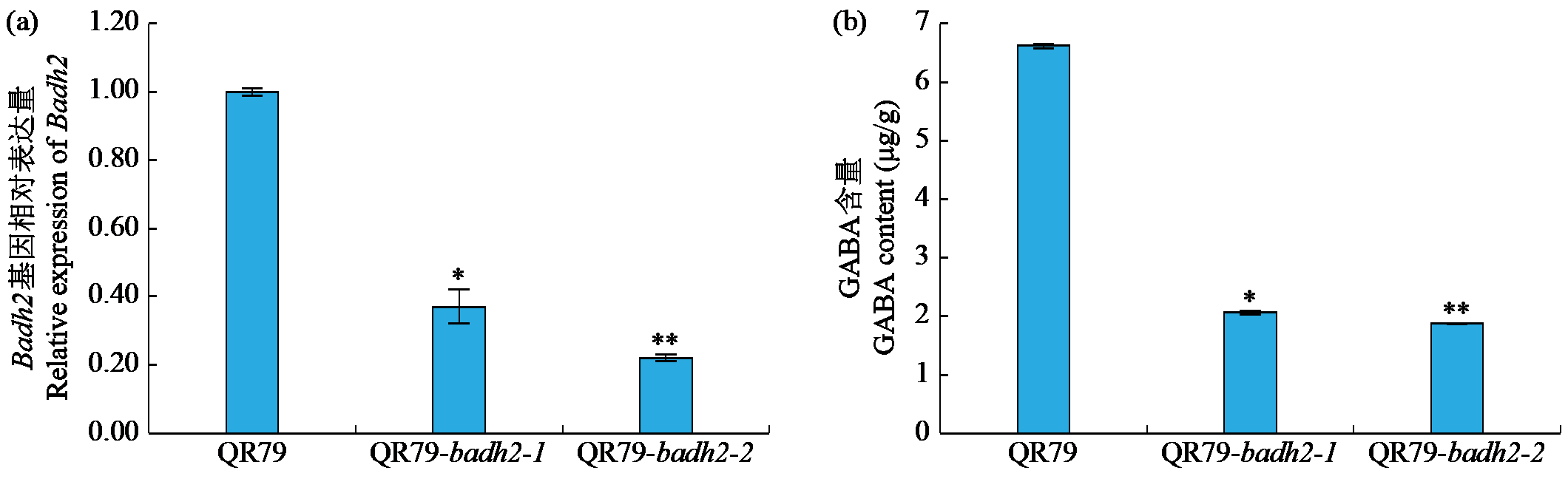

图5

转基因后代中Badh2基因表达水平及GABA含量检测 *：P < 0.05，**：P < 0.01。下同。

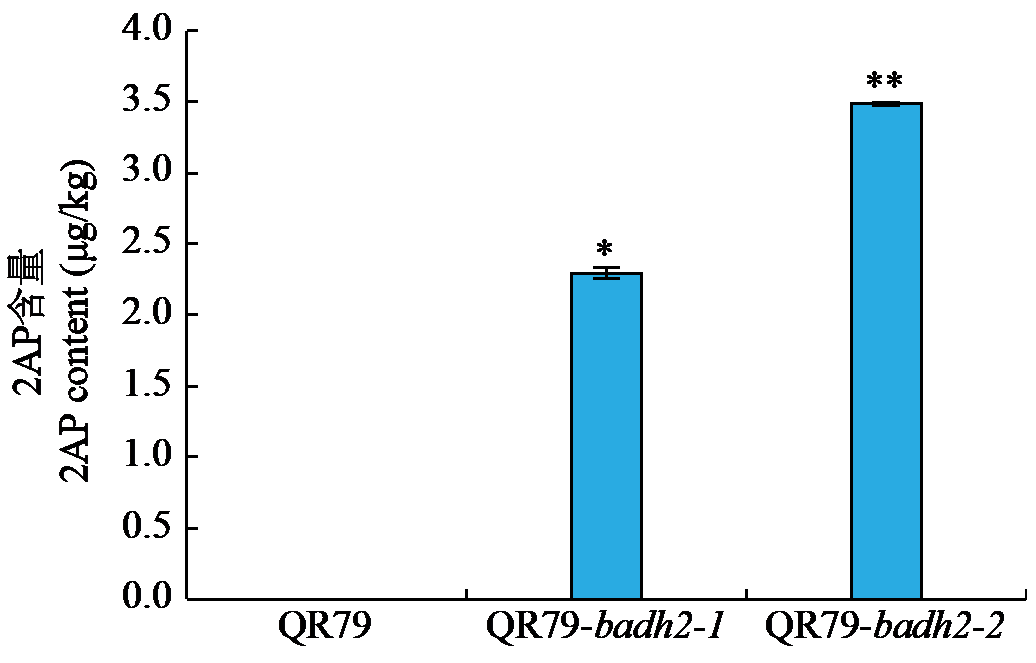

图6

野生型QR79和突变体QR79-badh2成熟籽粒中2AP含量

图7

野生型QR79和纯合突变体植株QR79-badh2的表型性状

[1] Sakthivel K, Sundaram R M, Rani N S, et al. Genetic and molecular basis of fragrance in rice. Biotechnology Advances, 2009, 27(4):468-473.
doi: 10.1016/j.biotechadv.2009.04.001 pmid: 19371779
[2] Okpala N E, Mo Z, Duan M, et al. The genetics and biosynthesis of 2-acetyl-1-pyrroline in fragrant rice. Plant Physiology and Biochemistry, 2019,135:272-276.
[3] Shan Q W, Zhang Y, Chen K L, et al. Creation of fragrant rice by targeted knockout of the OsBADH2 gene using TALEN technology. Plant Biotechnology Journal, 2015, 13(6):791-800.
doi: 10.1111/pbi.2015.13.issue-6
[4] Cruz N D, Khush G. Rice grain quality evaluation procedures. Aromatic Rices, 2000,3:15-28.
[5] Verma D K, Srivastav P P. Science and technology of aroma, flavor and fragrance in rice. USA: Apple Academic Press, 2019.
[6] Hu X Q, Lu L, Guo Z L, et al. Volatile compounds,affecting factors and evaluation methods for rice aroma: a review. Trends in Food Science & Technology, 2020,97:136-146.
[7] Buttery R G, Ling L C, Bo J O. 2-Acetyl-1-pyrroline: an important aroma component of cooked rice. Chemistry & Industry, 1982,22:958-959.
[8] Bergman C J, Delgado J T, Bryant R, et al. Rapid gas chromatographic technique for quantifying 2‐acetyl‐1‐pyrroline and hexanal in rice (Oryza sativa L.). Cereal Chemistry, 2000, 77 (4):454-458.
doi: 10.1094/CCHEM.2000.77.4.454
[9] Fitzgerald M A, McCouch S R, Hall R D. Not just a grain of rice: the quest for quality. Trends in Plant Science, 2009, 14(3):133-139.
doi: 10.1016/j.tplants.2008.12.004 pmid: 19230745
[10] Hashemi F S G, Rafii M Y, Ismail M R, et al. The genetic and molecular origin of natural variation for the fragrance trait in an elite Malaysian aromatic rice through quantitative trait loci mapping using SSR and gene-based markers. Gene, 2015, 555 (2):101-107.
doi: 10.1016/j.gene.2014.10.048 pmid: 25445269
[11] Griglione A, Liberto E, Cordero C, et al. High-quality Italian rice cultivars: chemical indices of ageing and aroma quality. Food Chemistry, 2015,172:305-313.
[12] Hinge V R, Patil H, Nadaf A. Aroma volatile analyses and 2AP characterization at various develop-mental stages in Basmati and Non-Basmati scented rice (Oryza sativa L.) cultivars. Rice, 2016, 9(1):1-22.
doi: 10.1186/s12284-015-0073-2
[13] Huang N, McCouch S, Mew T, et al. Development of an RFLP map from a doubled haploid population in rice. Theoretical and Applied Genetics, 1994, 89(5):609-617.
[14] Sood B C, Siddiq E A. A rapid technique for scent determination in rice. Indian Journal of Genetics and Plant Breeding, 1978,38:268-271.
[15] Ahn S N, Bollich C N, Tanksley S D. RFLP tagging of a gene for aroma in rice. Theoretical and Applied Genetics, 1992,84:825-828.
[16] Chen S H, Yang Y, Shi W W, et al. Badh2,encoding betaine aldehyde dehydrogenase, inhibits the biosynthesis of 2-acetyl- 1-pyrroline,a major component in rice fragrance. The Plant Cell, 2008, 20 (7):1850-1861.
doi: 10.1105/tpc.108.058917
[17] 陈明亮. 人工miRNA干扰共转化法获得无筛选标记转基因香稻. 北京: 中国农业科学院, 2012.
[18] Bradbury L M T, Gillies S A, Brushett D J, et al. Inactivation of an aminoaldehyde dehydrogenase is responsible for fragrance in rice. Plant Molecular Biology, 2008,68:439-449.
[19] 于梅梅, 陶权丹, 华杰, 等. 香软米水稻的研究进展. 江苏农业科学, 2019, 47(10):11-15.
[20] Hui S, Li H, Mawia A M, et al. Production of aromatic three‐line hybrid rice using novel alleles of BADH2. Plant Biotechnology Journal, 2022, 20(1):59-74.
doi: 10.1111/pbi.v20.1
[21] 韦新宇, 曾跃辉, 杨旺兴, 等. 利用CRISPR-Cas9技术编辑Badh2基因创制优质香型籼稻三系不育系. 作物学报, 2023, 49(8):2144-2159.
doi: 10.3724/SP.J.1006.2023.22043
[22] 张文婷, 李阳, 裘实, 等. 基于CRISPR/Cas9基因编辑技术研究Badh2基因对稻米品质的影响. 中国农业科技导报, 2025, 27(5):39-48.
[23] Gao Y B, Zhao Y D. Self‐processing of ribozyme‐flanked RNAs into guide RNAs in vitro and in vivo for CRISPR‐mediated genome editing. Journal of Integrative Plant Biology, 2014, 56(4):343-349.
doi: 10.1111/jipb.v56.4
[24] 孙慧宇, 宋佳, 王敬国, 等. 利用CRISPR/Cas9技术编辑Badh2基因改良粳稻香味. 华北农学报, 2019, 34(4):1-8.
doi: 10.7668/hbnxb.201751503
[25] 应兴华, 徐霞, 陈铭学, 等. 气相色谱-质谱技术分析香稻特征化合物2-乙酰基吡咯啉. 色谱, 2010, 28(8):782-785.
[26] 张现伟, 王静, 唐永群, 等. 香稻香味遗传育种及其保香栽培. 基因组学与应用生物学, 2010, 29(3):550-555.
[27] 王加峰, 郑才敏, 刘维, 等. 基于CRISPR/Cas9技术的水稻千粒重基因tgw6突变体的创建. 作物学报, 2016, 42(8):1160-1167.
[28] 周冠彤, 雷建峰, 代培红, 等. 棉花CRISPR/Cas9基因编辑有效sgRNA高效筛选体系的研究. 作物学报, 2021, 47(3):427-437.
doi: 10.3724/SP.J.1006.2021.04178
[29] 胡黎明, 彭彦, 郑文杰, 等. 利用CRISPR/Cas9技术创制镉低积累香型水稻. 杂交水稻, 2021, 36(6):77-83.
[30] 李景芳, 温舒越, 赵利君, 等. 基于CRISPR/Cas9技术创制耐盐香稻. 中国水稻科学, 2023, 37(5):478-485.
doi: 10.16819/j.1001-7216.2023.220907
[31] 黄艳辉.利用CRISPR/Cas9技术编辑SD1及LARGE2基因创制老香禾新种质. 贵阳: 贵州大学, 2023.
[32] 卫正. 利用CRISPR介导的基因编辑技术创制水稻优质抗病新种质. 北京: 中国农业科学院, 2022.
[33] 唐湘如, 吴密. 施用锌、铁、镧肥对香稻米质和产量的影响. 杂交水稻, 2007, 22(2):69-72.
[34] Pattanayak V, Lin S, Guilinger J P, et al. High-throughput profiling of off-target DNA cleavage reveals RNA-programmed Cas 9 nuclease specificity. Nature Biotechnology, 2013, 31(9):839-843.
doi: 10.1038/nbt.2673 pmid: 23934178
[35] Endo M, Mikami M, Toki S. Multigene knockout utilizing off-target mutations of the CRISPR/Cas9 system in rice. Plant and Cell Physiology, 2015, 56(1):41-47.
doi: 10.1093/pcp/pcu154 pmid: 25392068
