作物杂志,2026, 第4期: 17–26 doi: 10.16035/j.issn.1001-7283.2026.04.003

• 遗传育种·种质资源·生物技术 • 上一篇    下一篇

利用CRISPR/Cas9技术编辑GS3、GS9和GW2基因改良水稻粒型

阙涛1(), 吴娴2, 王忠妮2, 吴钱蓉3, 龙武华2,4, 王倩2,4, 朱速松5()

  1. 1 贵州师范大学生命科学学院， 550025， 贵州贵阳
    2 贵州省农业科学院水稻研究所， 550006， 贵州贵阳
    3 贵州大学生命科学学院， 550000， 贵州贵阳
    4 农业农村部喀斯特山区作物基因资源与种质创新重点实验室， 550006， 贵州贵阳
    5 贵州省农业科学院农作物品种资源研究所， 550006， 贵州贵阳
  • 收稿日期:2025-04-17 修回日期:2025-05-21 出版日期:2026-08-15 发布日期:2026-08-11
  • 通讯作者: 朱速松
  • 作者简介:阙涛，研究方向为水稻分子遗传育种，E-mail：3290376576@qq.com
  • 基金资助:
    贵州省优质特色水稻研发与转化及园区技术服务能力建设(黔科合平台人才（2017）5719号);贵州省农业农村厅种业资金项目“贵州优质资源优异基因挖掘及其分子改良”;喀斯特山区特色作物生物育种创新能力建设(黔科合服企[2024]003-1)

Improvement of Rice Grain Shape by Editing of GS3, GS9 and GW2 Genes Using CRISPR/Cas9 Technology

Que Tao1(), Wu Xian2, Wang Zhongni2, Wu Qianrong3, Long Wuhua2,4, Wang Qian2,4, Zhu Susong5()

  1. 1 School of Life Sciences, Guizhou Normal University, Guiyang 550025, Guizhou, China
    2 Rice Research Institute, Guizhou Academy of Agricultural Sciences, Guiyang 550006, Guizhou, China
    3 College of Life Sciences, Guizhou University, Guiyang 550000, Guizhou, China
    4 Key Laboratory of Crop Genetic Resources and Germplasm Innovation in Karst Mountainous Areas, Ministry of Agriculture and Rural Affairs, Guiyang 550006, Guizhou, China
    5 Institute of Crop Variety Resources, Guizhou Academy of Agricultural Sciences, Guiyang 550006, Guizhou, China
  • Received:2025-04-17 Revised:2025-05-21 Online:2026-08-15 Published:2026-08-11
  • Contact: Zhu Susong

RichHTML

1

PDF (PC)

3

摘要：

利用CRISPR/Cas9基因编辑技术同时对水稻品种锡贡6号的粒型相关基因GS3、GS9和GW2进行编辑，通过多基因编辑策略改良水稻粒型，分别在这3个基因的第一外显子设计敲除靶点，并构建CRISPR/Cas9表达载体，通过农杆菌介导的遗传转化获得T0代转基因植株。结果表明，T0代植株中出现了多种基因编辑类型，包括双等位基因纯合突变和双杂合突变。通过自交获得T1代植株，并筛选出不含外源转基因成分且GS3、GS9和GW2基因均发生与T0代一致突变的突变体材料。对T1代突变体的农艺性状分析表明，突变体1188-42-1的粒长最高增加了21.62%，1188-4-12的粒宽最高增加了13.16%，1188-4-13的籽粒长宽比最高增加了26.65%。同时，各突变体的千粒重、单株粒重、单株产量、出糙率、精米率、整精米率和垩白度均显著提高，但各突变体的结实率均有轻微降低，降幅为4.12%~13.40%。另外，1188-18-8的垩白粒率最高，增加了175.00%，而1188-42-2的垩白粒率最低，降低了50.50%。

关键词: CRISPR/Cas9, 水稻, 粒型, 多基因编辑

Abstract:

The CRISPR/Cas9 gene-editing technique was used to simultaneously modify the grain shape-related genes GS3, GS9, and GW2 in the rice cultivar Xigong 6. The aim was to improve the rice grain shape through a multi-gene editing strategy. Knockout target sites were designed within the first exons of each gene, and CRISPR/Cas9 expression vectors were constructed to produce T0 generation transgenic plants via Agrobacterium- mediated genetic transformation. The results showed that various types of gene-editing mutations, including biallelic homozygous and double heterozygous mutations, were observed in the T0 generation. T1 generation plants were obtained through self-pollination, and mutant materials lacking exogenous transgenic components, while mutations in the GS3, GS9, and GW2 consistent with those in the T0 generation were screened. Agronomic trait analysis of T1 generation mutants revealed significant improvements in grain morphology: mutants 1188-42-1 showed a maximum grain length increase of 21.62%, 1188-4-12 exhibited a 13.16% increase in grain width, and 1188-4-13 displayed a 26.65% enhancement in length-width ratio. Concurrently, 1000-grain weight, grain weight per plant, yield per plant, brown rice rate, rice milling rate, head rice rate, and chalkiness degree were all significantly increased. However, a minor reduction in seed-setting rate 4.12%-13.40% was observed across all mutants. Notable variations in chalky rate were recorded: line 1188-18-8 showed a 175.00% increase, while 1188-42-2 demonstrated a 50.50% decrease.

Key words: CRISPR/Cas9, Rice, Grain shape, Multi-gene editing

表1

引物信息

引物名称Primer name 引物序列（5′-3′）Primer sequence (5′-3′)
Cas-9-gRT1 ACGCGCTCCACCGCGAGATgttttagagctagaaat
Cas-9-OsU6aT1-R ATCTCGCGGTGGAGCGCGTCggcagccaagccagca
Cas-9-gRT2 CGATTGCTTCCTGCTCGGTTgttttagagctagaaat
Cas-9-OsU6bT2-R AACCGAGCAGGAAGCAATCGCaacacaagcggcagc
Cas-9-gRT3 AAGCTCGCGCCGTGCTACATgttttagagctagaaat
Cas-9-OsU3T3-R ATGTAGCACGGCGCGAGCTTCtgagcctcagcgcag
U-F CTCCGTTTTACCTGTGGAATCG
gRNA-R CGGAGGAAAATTCCATCCAC
Pps-R TTCAGAggtctcT accg ACTAGTATGGAATCGGCAGCAAAGG
Pgs-L AGCGTGggtctcG ctcg ACGCGTATCCATCCACTCCAAGCTC
SP-L GCGGTGTCATCTATGTTACTAG
RB-R AAGTTGGGTAACGCCAGGGT
Cas9-F GAGACTATCACCCCTTGGAA
Cas9-R GATGAGCGTAAGTCTTGAGC
GS3-F CGGAGTGACATGGCAATGG
GS3-R TTCGACAGATAGCAAGCCGT
GS9-F AGCTGCAGGGAGTGTCCT
GS9-R AGCAGGGCACGTACAGAGT
GW2-F GAGTGGTGAGGGTTTCATCTG
GW2-R TACCAGGAAGCAGATGGGG

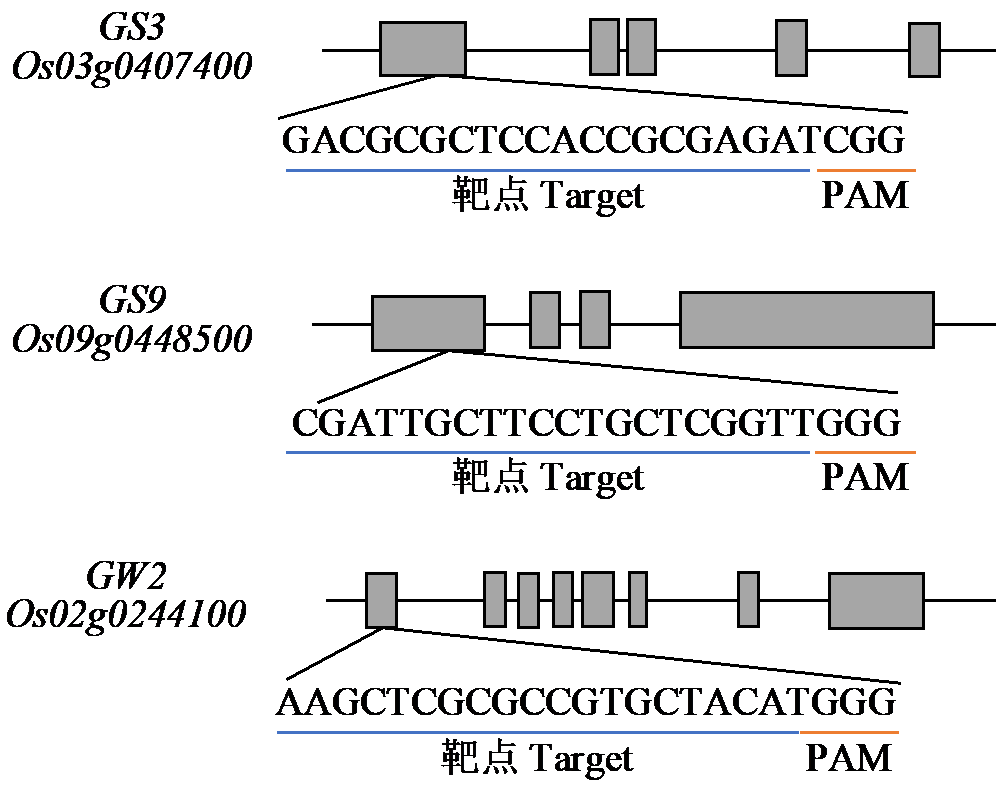

图1

GS3、GS9和GW2基因敲除靶点位置

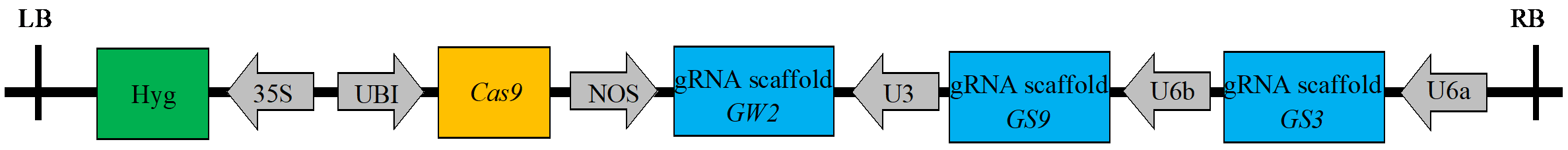

图2

载体图谱 插入片段区域包含35S启动子激活的潮霉素磷酸转移酶基因，泛素启动子激活的Cas9基因，U6a、U6b和U3启动子激活的具有敲除靶点的GS3/GS9/GW2-sgRNA表达盒；LB：T-DNA左边界；RB：T-DNA右边界。

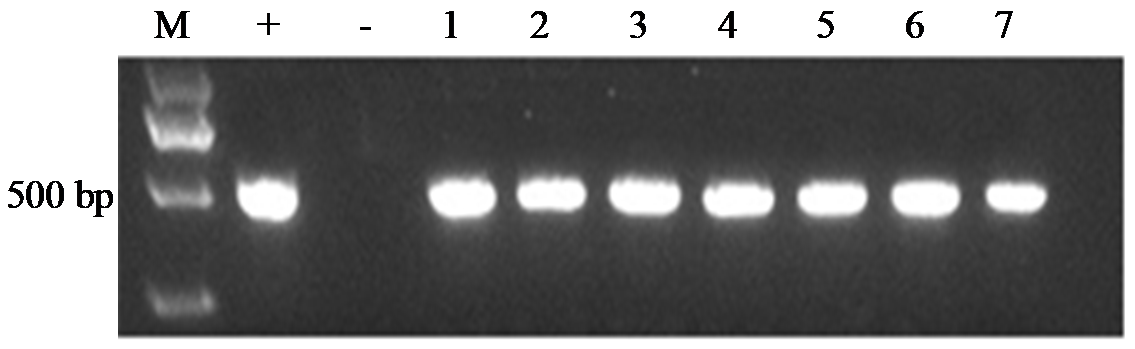

图3

筛选T0代阳性转化植株 M：2000 bp marker；“+”：阳性对照；“-”：阴性对照，下同。1~7依次为1188-2、1188-4、1188-11、1188-18、1188-31、1188-33和1188-42。

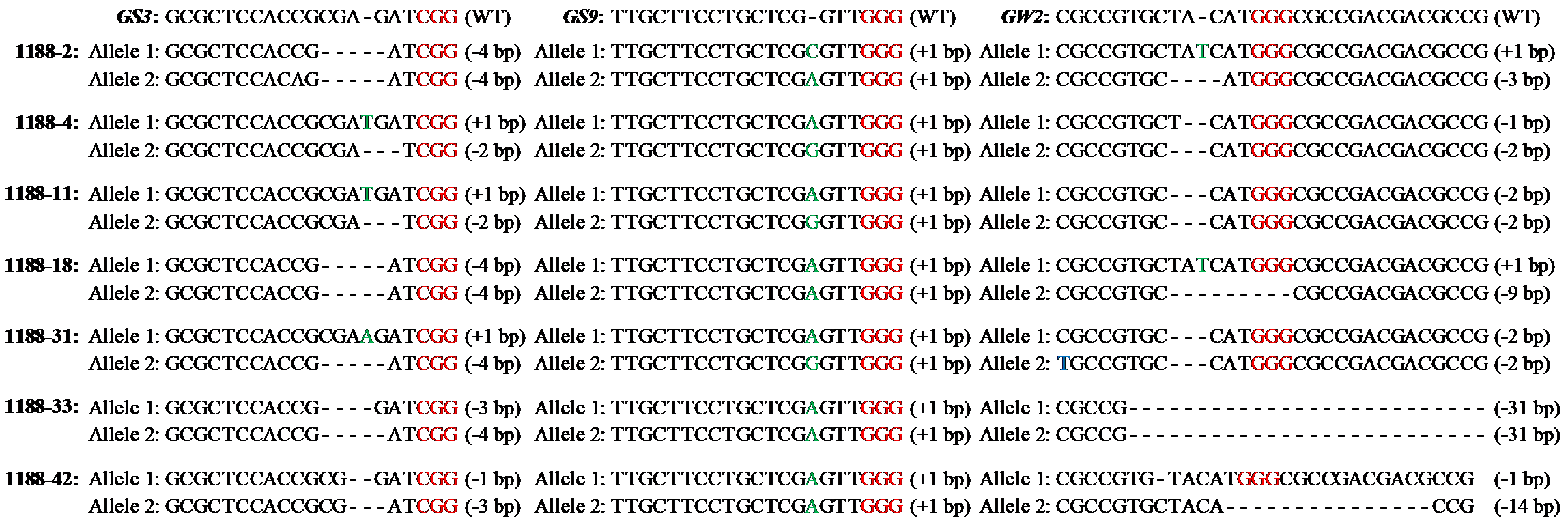

图4

T0代3个靶点的Sanger测序分析 “-”代表缺失；绿色代表插入位点；蓝色代表碱基替换位点；红色代表PAM序列。下同。

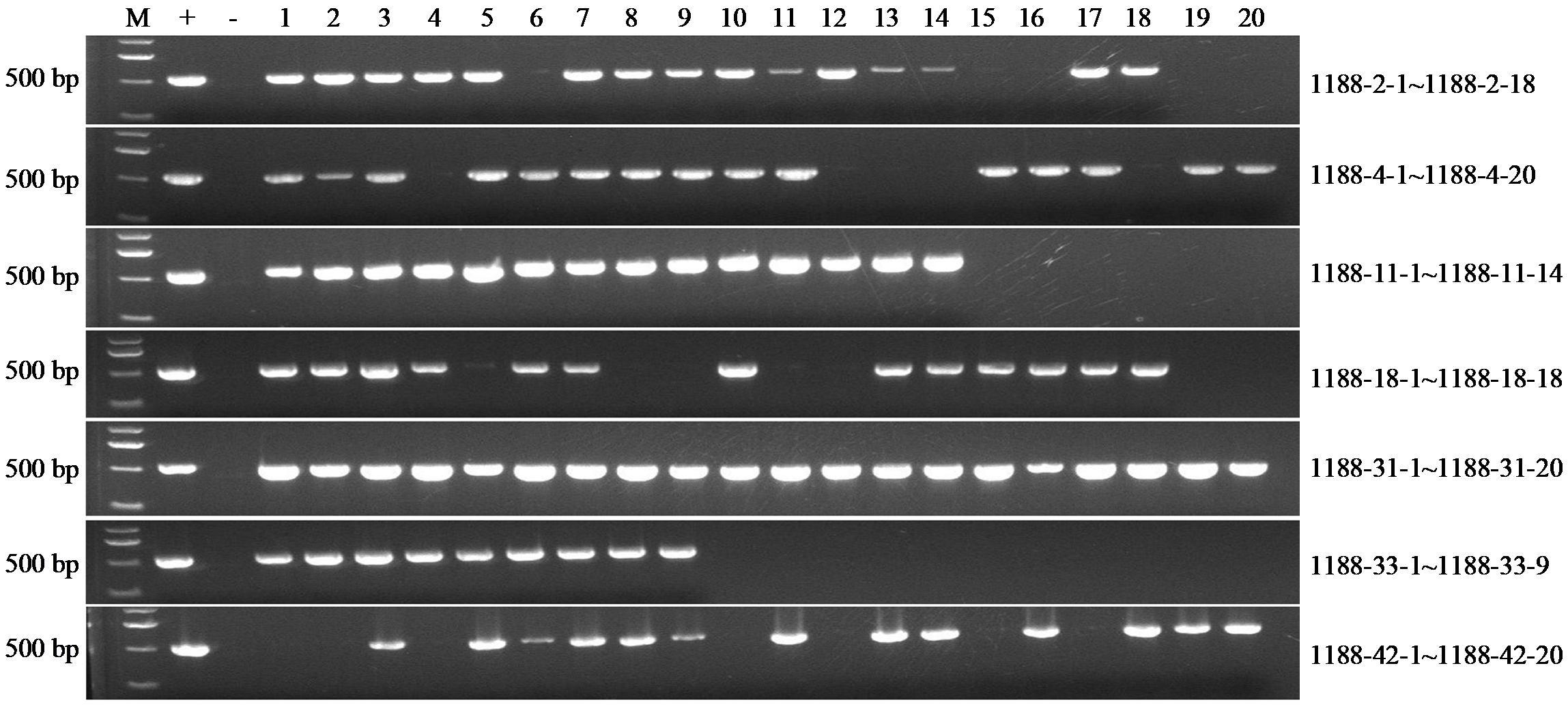

图5

PCR筛选无外源转基因成分的突变植株

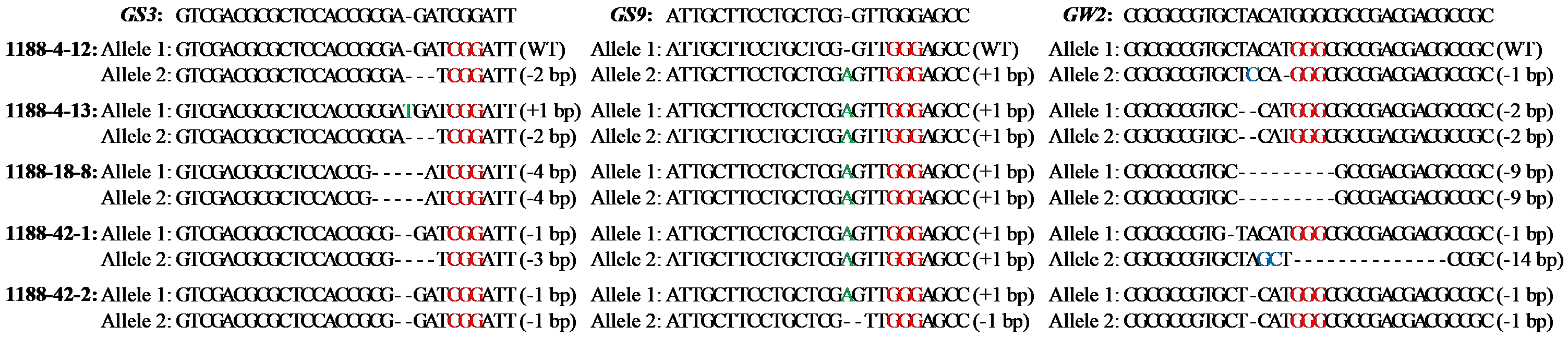

图6

T1代突变类型 1188-4-12、1188-4-13、1188-18-8、1188-42-1和1188-42-2为T1代突变体。下同。

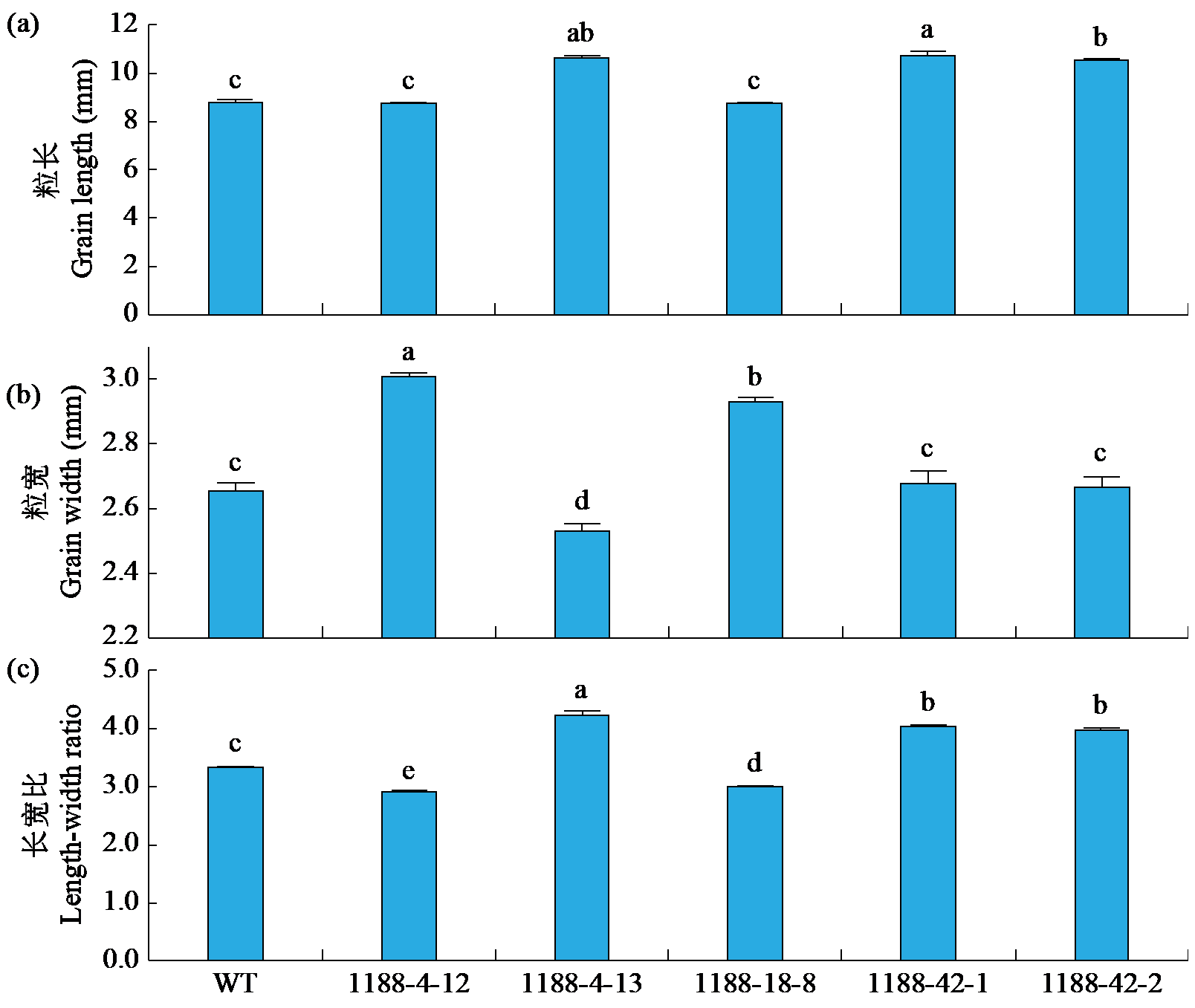

图7

T1代粒型农艺性状差异 WT为野生型。不同小写字母表示差异显著（P < 0.05），下同。

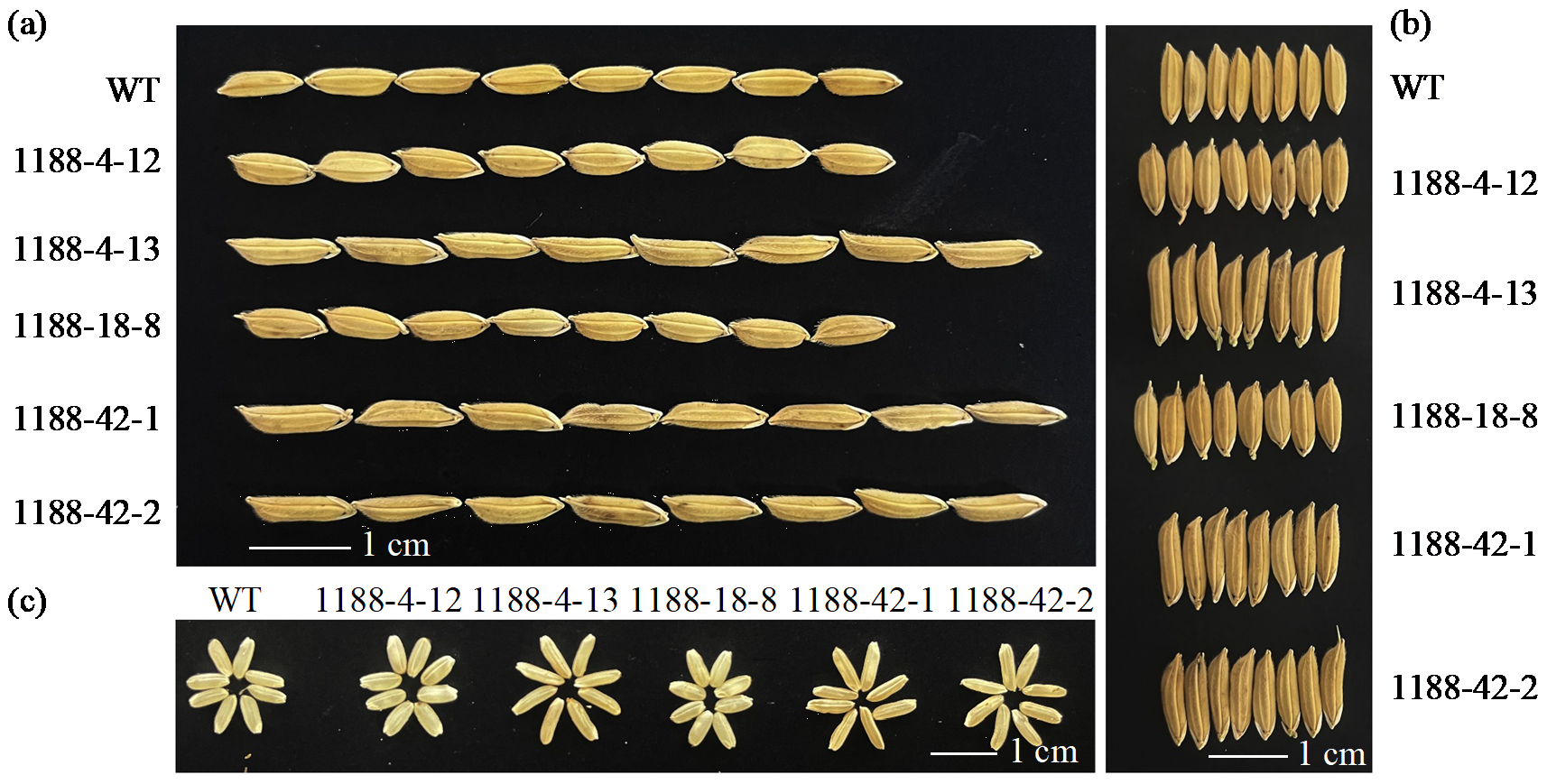

图8

T1代粒长、粒宽和糙米外观形态观察 (a) 粒长；(b) 粒宽；(c) 糙米外观形态。

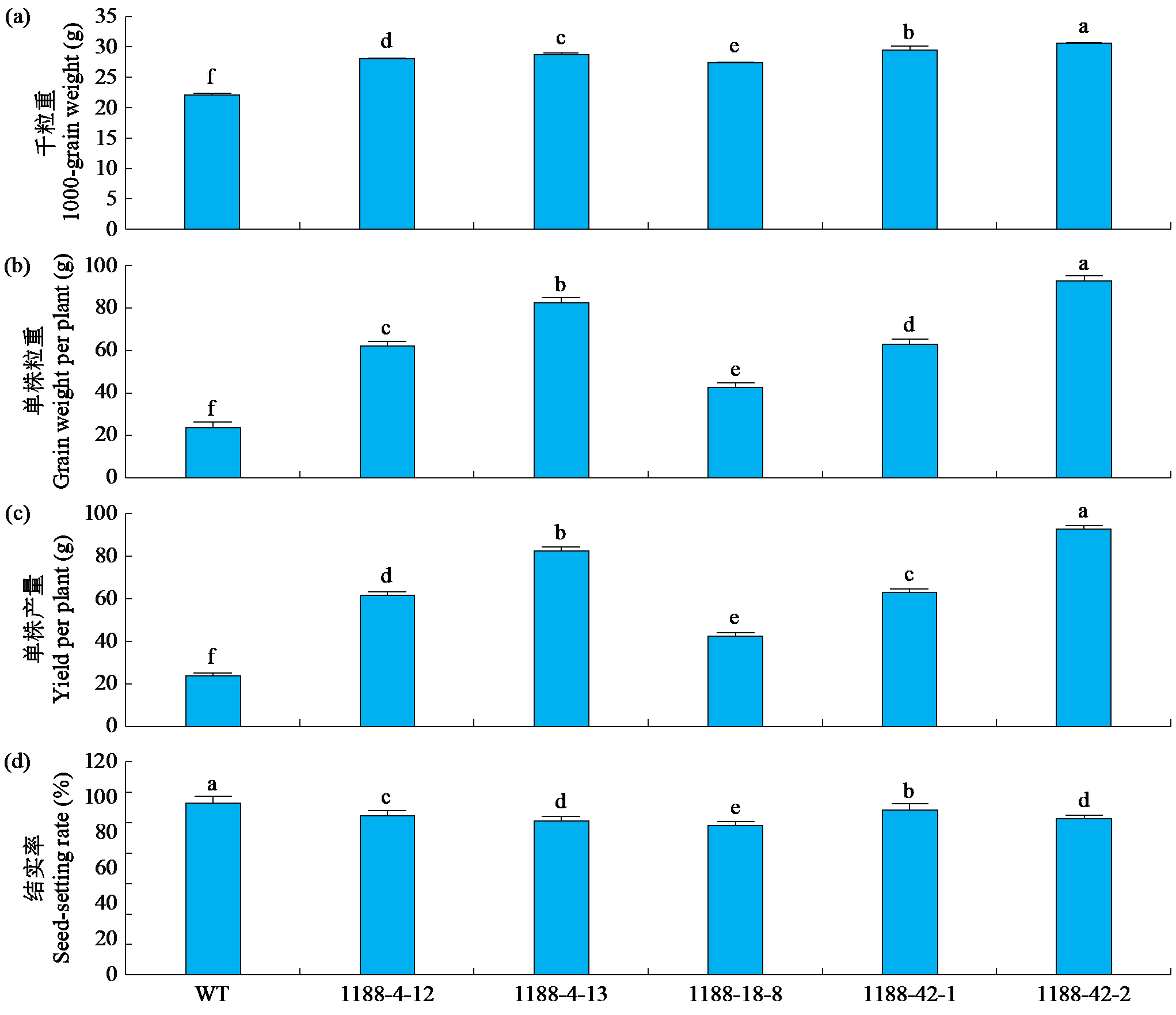

图9

T1代单株产量农艺性状差异

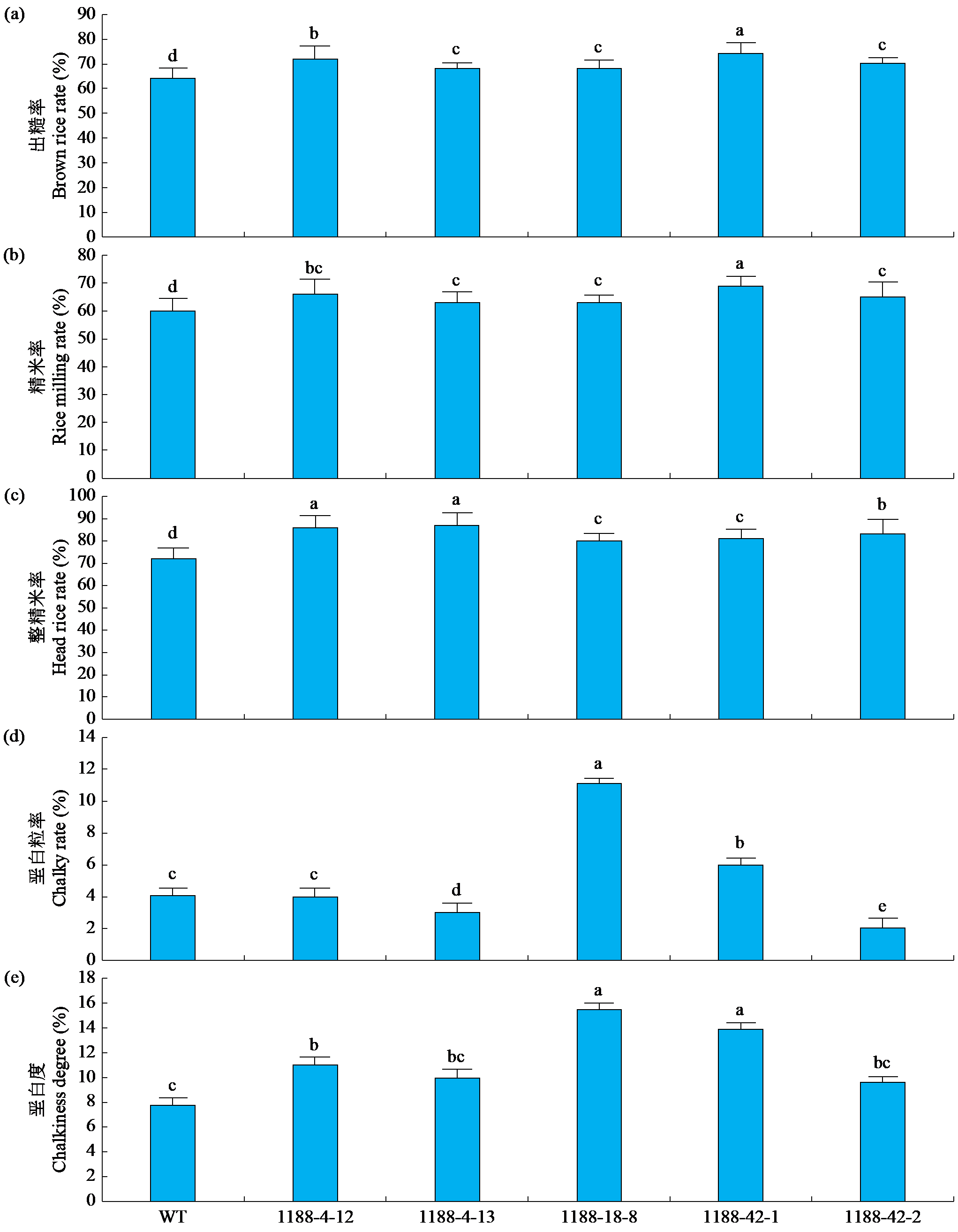

图10

T1代稻米外观品质农艺性状差异
